VJ-626UF v1.10

Necessary tools



In order to be able to install firmware, the following tools are required:

  • Personal computer with MS Windows
  • Network cable to connect the Valuejet wit the pc
  • The latest MSA-tool (Mutoh Service Assistance) or MSM-tool (Mutoh Status Monitor)



Detailed instructions how to install the firmware, are described in the maintenance manual.
The latest current firmware can be downloaded on the link here below this article.





Release date: 03 february 2021

Current version - 1.10



Bugfix

  • While "[*] Check Clr. -> E"is displayed on the panel and the cartridge is removed and reinserted, none of the following didn't work:
    • Media feed
    • Nozzle check print
    • Print head cleaning



This is issue has been fixed.





Version history





Release date: 02 september 2020

1.09



Changed items

  • Implementation of a new feature to handle smart-chip related issues, with the new S/C Recovery procedure.
    For more information check the following article: TIB818 - Smart Chip Recovery
  • The "Ink End" detection, software-handling and ink-consumption have been improved.
  • When the diameter input is set to 27mm in rotary mode, the UV unit collides with the rotary unit. Changed the minimum input value of diameter to 29mm
  • When receiving a remote command for nozzle check during media detection, the display shows that analysis is in progress, but nothing responds. This has been fixed
  • When printing the nozzle check remotely the time and date weren't printed correctly. This has been fixed
  • E074 error occurred when the carriage was moved manually. This could occur when the printer is in sleep mode and cartridges were replaced (removed/inserted). This has been fixed.
  • Added support for UH21 ink cartridges



Release date: 17 february 2020

1.08



This firmware version will update / adapt certain internal code structures.



Release date: 9 december 2019

1.07



Changed items

Color maintenance menu has been added in user mode (only when using US11 ink)

Color Maint

Color Maint. : On



The printer performs color ink maintenance when waking up after 72 hours of sleep mode to ensure smooth startup after longer sleep times.



Color Maint. : Off



The printer does not perform the color ink maintenance



Diagnostics



A new parameter-setting has been introduced since firmware version 1.06 (or higher):

Diagnostics >> Parameter >> Update >> Table Shaft



There are 2 possible combinations:

Parameter setting: Paramter >> Update
>> Table >> Shaft A		 Paramter >> Update
>> Table >> Shaft B
To be used in the following sitation: When the original shaft is being used (former part number DG-48154) When Technical Bulletin TIB816 has been applied and the table shaft is upgraded with part number DF-30519.





Release date: 11 december 2018

1.05



Changed items

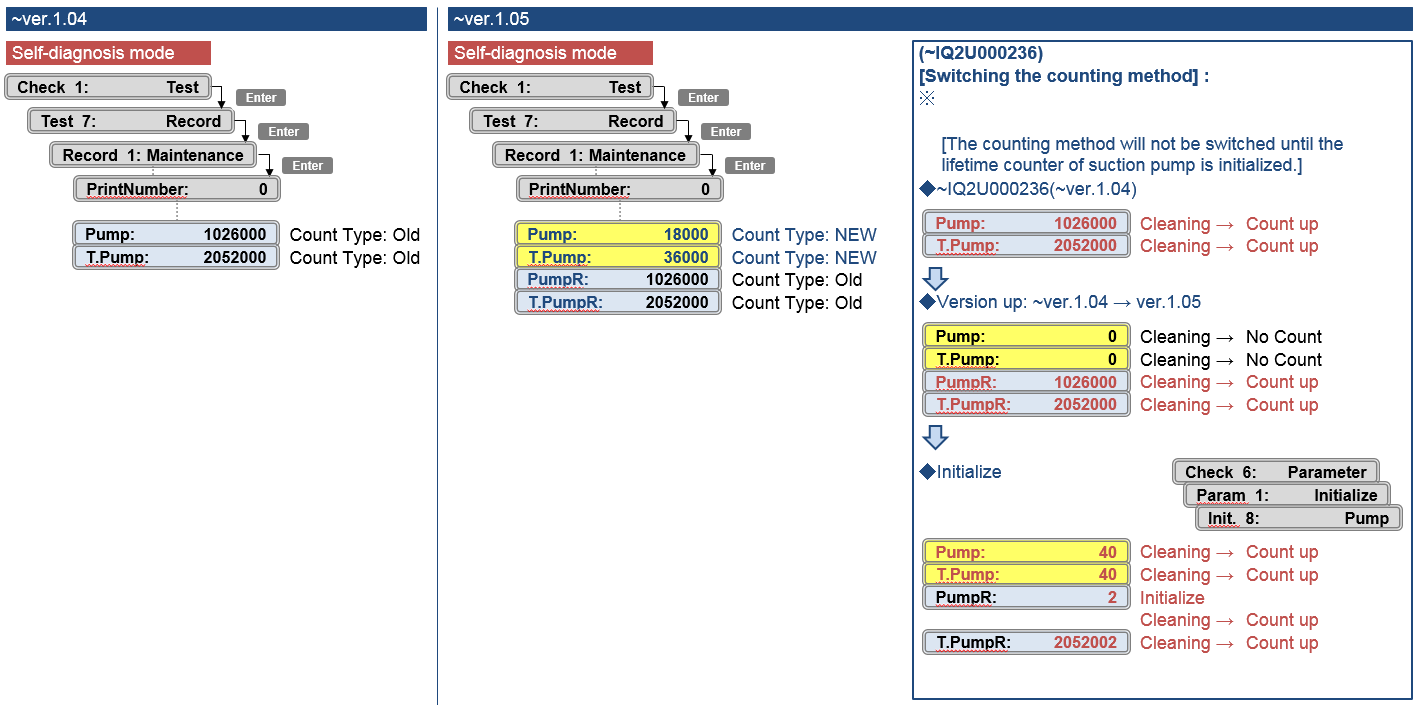

Changed the lifetime counting method for suction pump

=> The lifetime of suction pump is changed from 285 hours to 17,100 counts (equivalent to 5 hours).



Self Diagnonsis Mode





Bug correction



Fix the bug that it takes time to complete a print job if using Mac OS High Sierra.



Remark



When you install this F/W, please use MSA ver. 4.1.5.0 or higher



Release date: 10 october 2018

1.04



New Items

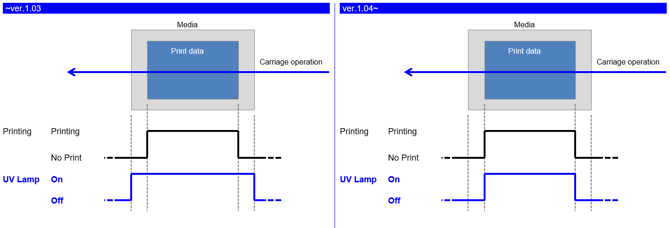

  • Changed UV lamp operation during printing

    UV irradiation area is changed from Media width to Print width.

    Print Data

  • Print the printer information on the nozzle check pattern [User mode]

    Printer info.: Print time, S/N, F/W Version

    Printer Info

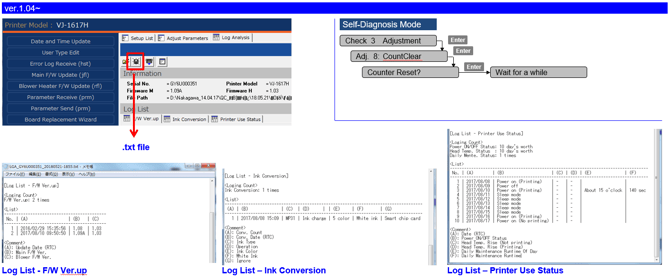

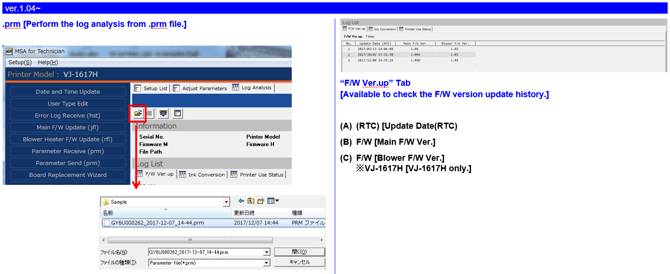

  • Added the function to save the history of daily maintenance log

    The history can be checked with MSA ver.4.1.7.0 or later.
    (Cannot be checked on the operation panel)

    MSA

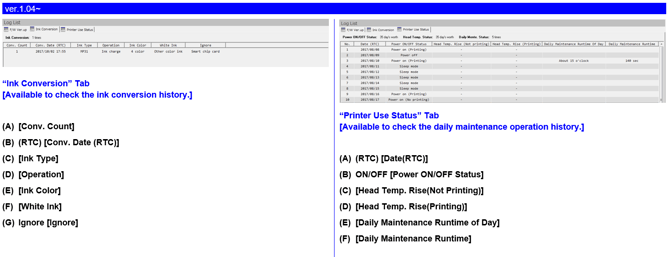

    Ink Conversion
    Self Diagnosis Mode

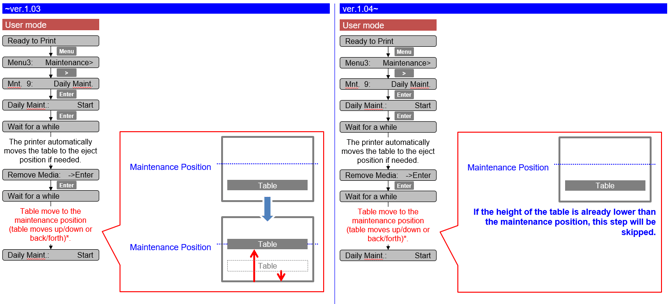

  • Changed the printer operation during the daily maintenance [User mode (Rotary Mode)]


    If the table is lower than the maintenance position, the table up/down operation is skipped.

    Rotary Mode

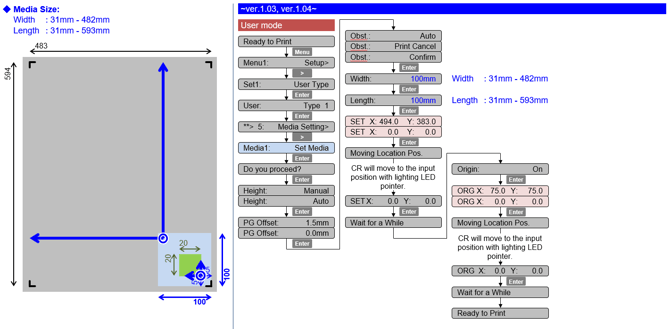

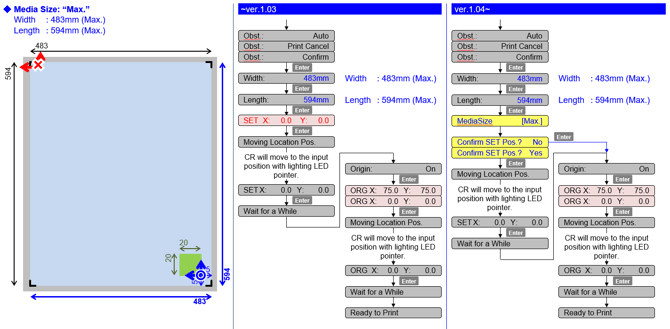

  • Added skip function to the Media setting menu [User mode]

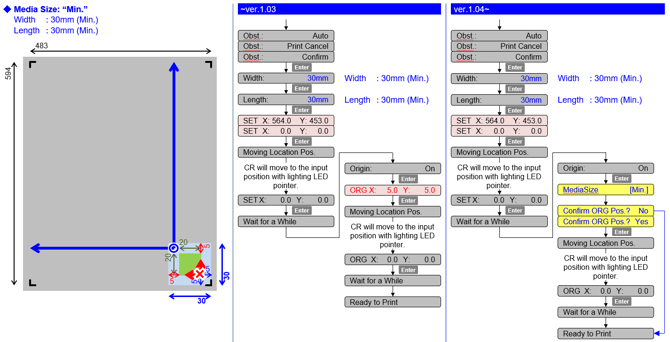

    Some steps can be skipped if the media size is set to maximum or minimum.

    Media Setting
    Media Size
    Media Size

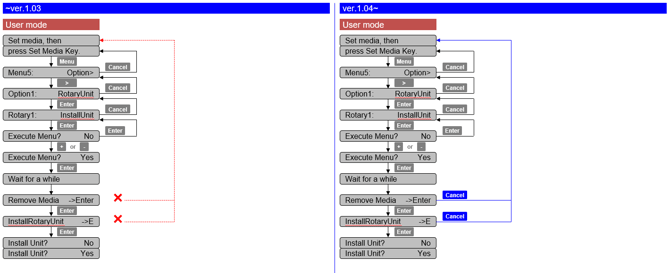

  • Added a cancel function to the rotary unit installation [User mode]


    The printer can cancel the rotary unit installation even after executing the menu.


    User Mode

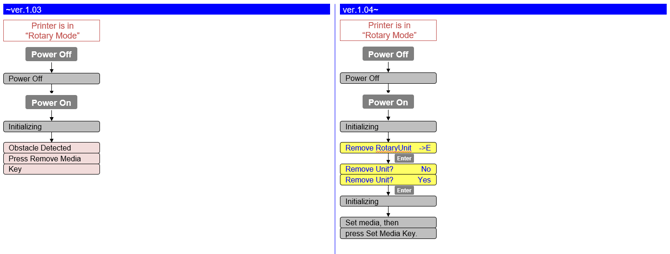

  • Changed the power-on sequence in Rotary Mode [User mode (Rotary Mode)]

    If turning off and then turning on in Rotary Mode, the message appears to prompt users to remove the rotary unit.


    Rotary Mode

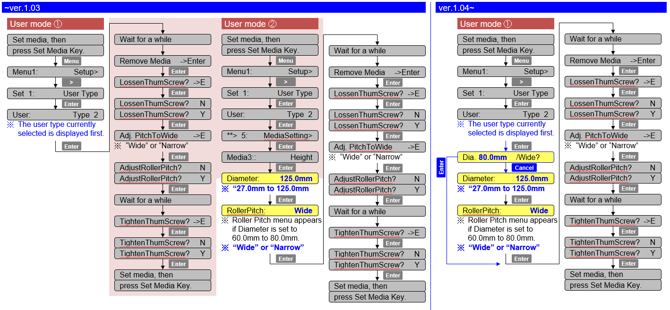

  • Added the confirmation message to the user type setting [User mode (Rotary Mode)]

    If a user type has not been set, the message appears on the operation panel to confirm the media height.


    Rotary Mode

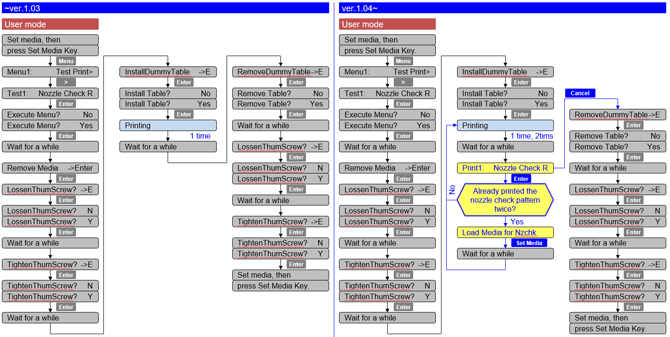

  • Improved the nozzle check printing function [User mode (Rotary Mode)]

    The nozzle check pattern can be printed twice for a media.


    Nozzle Check Pattern

Bug corrections

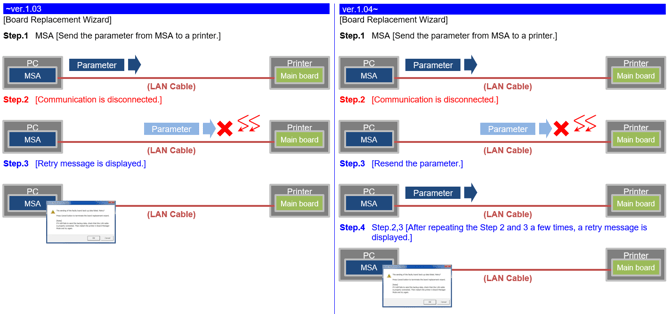

  • Corrected the F/W bug that the parameter in MSA cannot be sent to a printer

    If the communication between MSA and the main board is cut off, MSA will automatically retry to sent the parameter.

    MSA







Release date: 26 april 2018

1.03





New Items

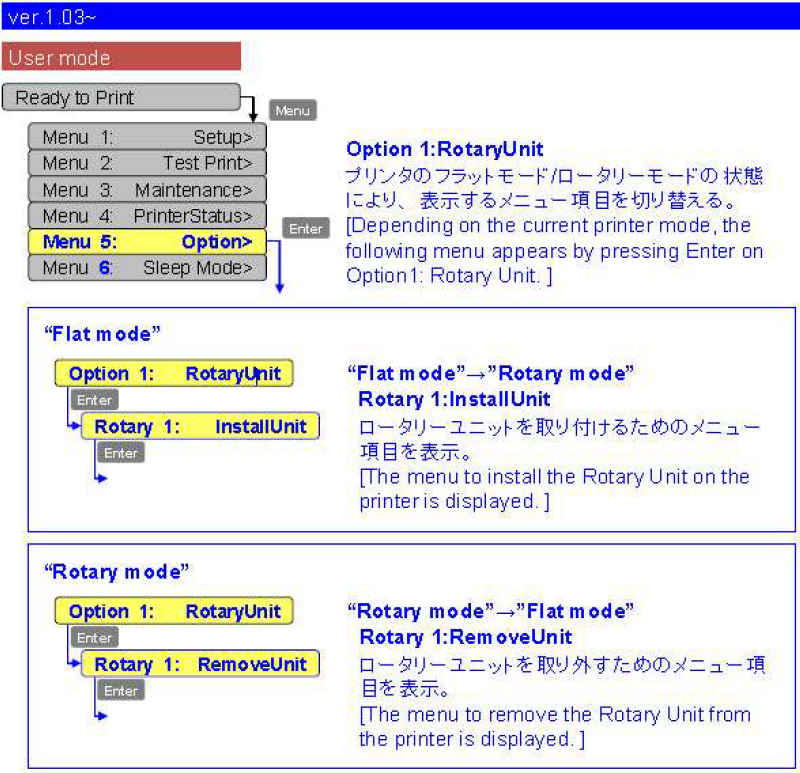

  • Mutoh Rotary Unit

    This firmware support the new rotary option
    Mutoh Rotary Unit
    Important
    • In order to work with the Mutoh rotary unit, you will need to upgrade the ValueJet Layer editor to the latest version, and you will need the Layout and print tool 2. Both can be found on the Mutoh FTP site.



  • Changed the frequenty of the "lifetime" alert message

    Persistent lifetime alert messages can now be deleted with the "cancel" key (User Mode)
    7 days after pressing the "cancel" key, the message will reappear and you just have to hit the "cancel" button again
    Cancel

  • Parameter update after initial ink-charge

    Previously the printer always needed a reboot after ink-charge, in order to properly store the charge-flag in the parameters. When an error occurred after sleep mode, the charge-flag was reset and inks needed to be recharged again if the printer was not properly restarted. From this version, parameters are now properly stored after initial charge without the necessity to reboot.

  • Added the alert buzzer menu

    If the alert buzzer is set to off, the beep sound will turn off automatically after several beeps
    Alert Buzzer

  • Initial start-up sequence has been changed

    When starting a new machine, during the start-up sequence, the firmware will now ask confirmation if the wiper has been installed
    Firmware

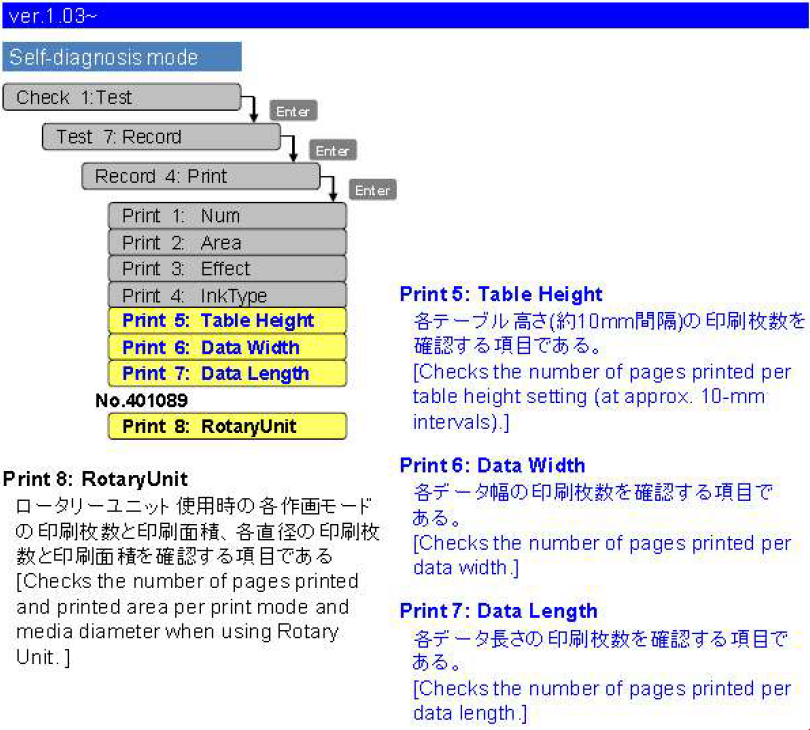

  • Added extra menu items in Diagnostics

    Data Width, Data Length, Table Height and RotaryUnit have been added in the menu.
    Diagnostics





Release date: 16 august 2017

1.02



New items

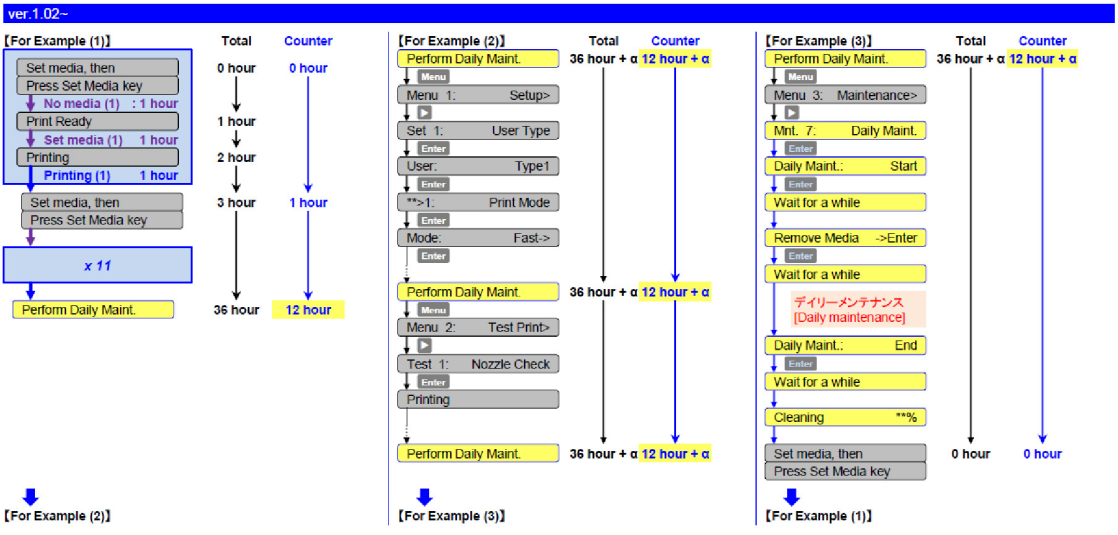

  • Display  the  message  to  prompt  users  to  perform  the  daily  maintenance:  when  the  total printing time reaches 12 hours, the message appears to prompt users to perform the daily maintenance
    Daily Maintenance



Changed items

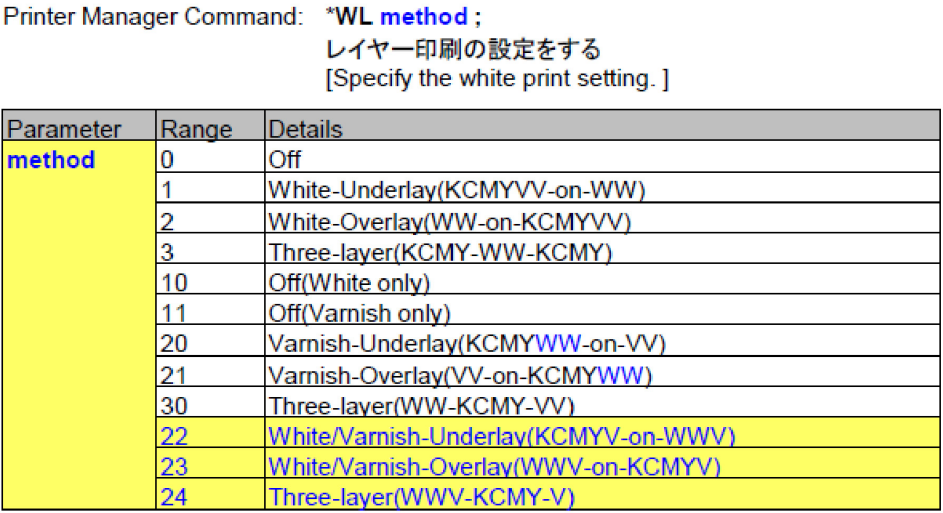

  • Additional *WL commands added
    • wl22: white/varnish underlay    KCMYV-on-WWV
    • wl23: white/varnish overlay      WWV-on-KCMYV
    • wl24: 3 layer                             WWV-KCMY-VPrinter Manager Command
Attachments (1)

VJ626UF_V110.jfl 1.97 MB
