Necessary tools
In order to be able to install firmware, the following tools are required:
- Personal computer with MS Windows
- Network cable to connect the Valuejet wit the pc
- The latest MSA-tool (Mutoh Service Assistance) or MSM-tool (Mutoh Status Monitor)
Detailed instructions how to install the firmware, are described in the maintenance manual.
The latest current firmware can be downloaded below this article.
Release date: 31 March 2021
Current version - 1.09
User Mode
- Implementation of a new feature to handle smart-chip related issues with the new S/C Recovery procedure.
For more information check the following article: TIB818 - Smart Chip Recovery
-
The "Ink End" detection, software-handling and ink-consumption have been improved.
Version history
Release date: 7 November 2017
1.07
Changed items

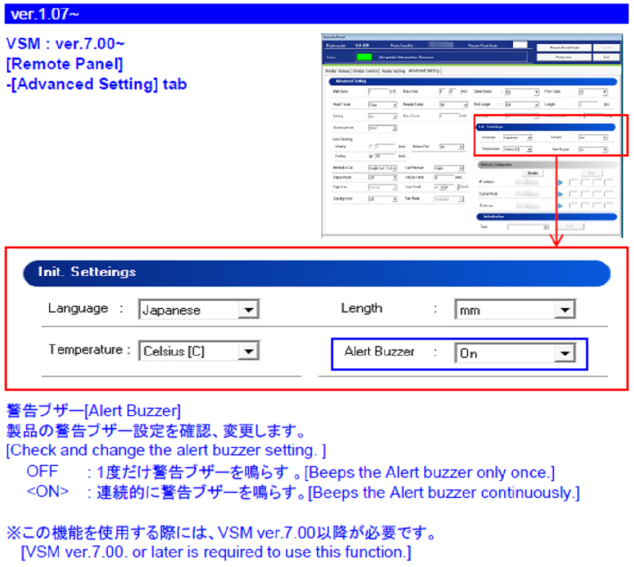

- Alert buzzer menu added: if Alert Buzzer is set to Off, the beep sound will automatically turn off after several beeps.
Remark: ValueJet Status Monitor - VSM 7.00 or later is required to use this function - Changed the frequency of lifetime alert message if 7 days have passed after pressing Operation key, the alert message appears again when you print
-

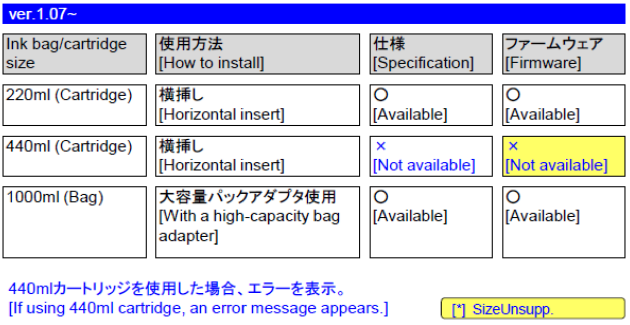

The use of 440ml cartridges is no longer supported: if a 440ml cartridge is used, an error message appears
Diagnostics mode

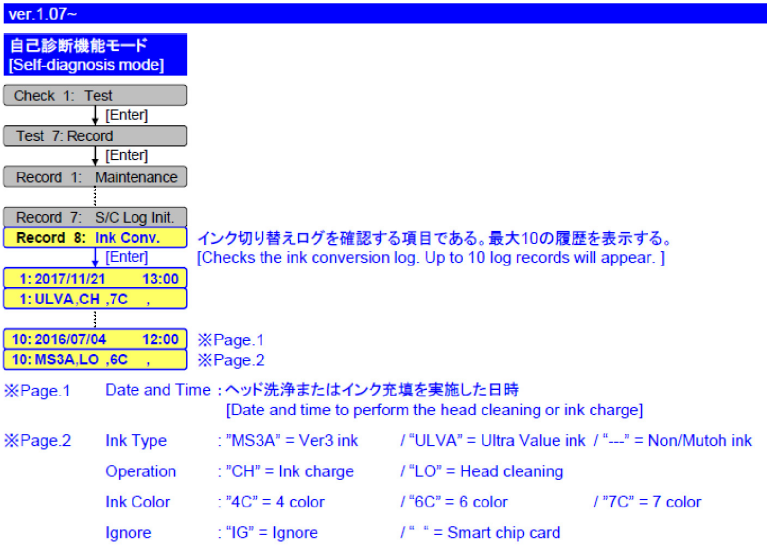

- Ink conversion log menu added
Release date: 16 august 2017
1.05
Changed items
In diagnostics mode

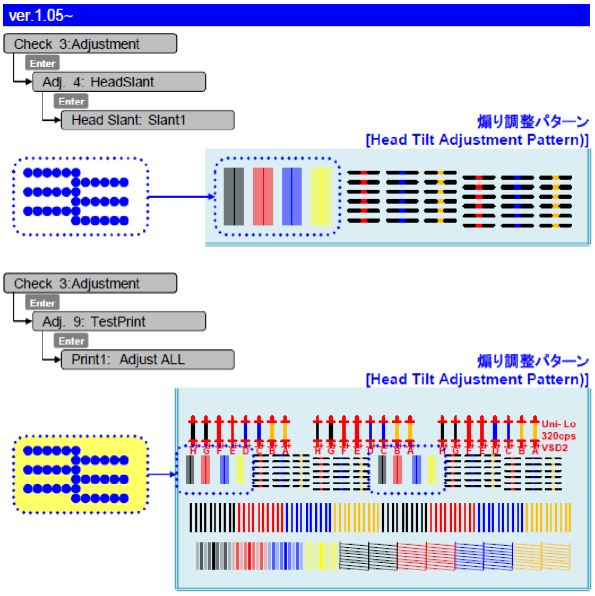

- Head slant pattern printing for "adjust all"
Bug fixes

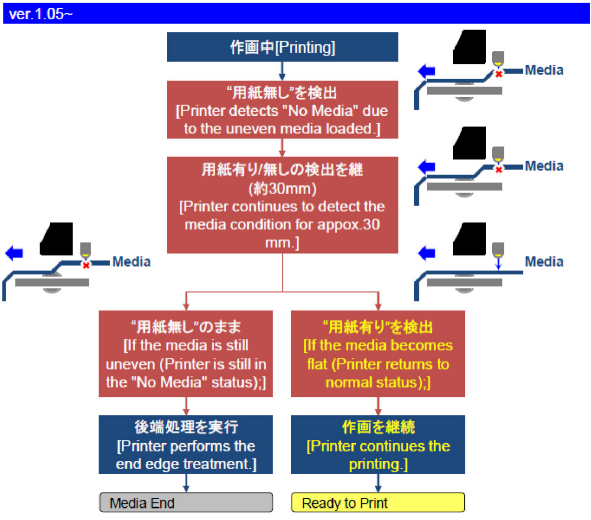

- End edge treatment when uneven media is detected
Release date: 20 january 2017
1.04
Changed items

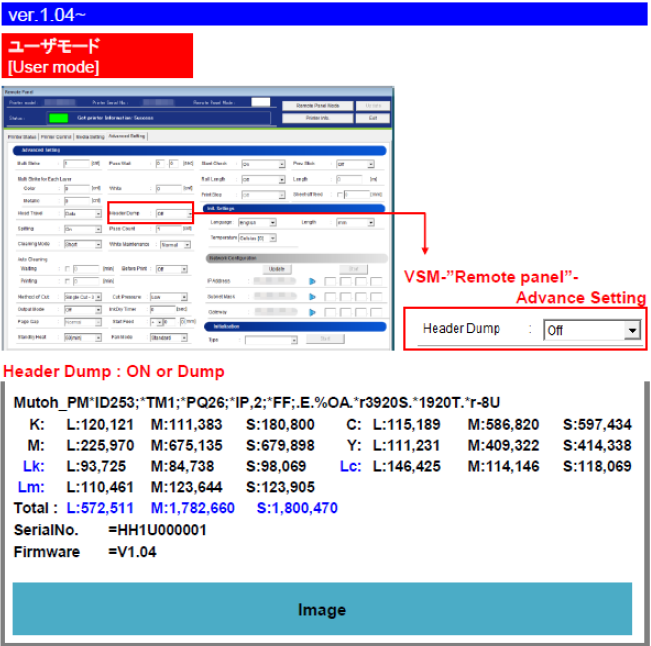

- Modified the header dump printout: the light ink color code was modified in the header dump printout
- K -> Lk
- C -> Lc
- C -> Lc
Diagnostics mode
- Added the reboot request message at the end of the initial ink charge menu flow

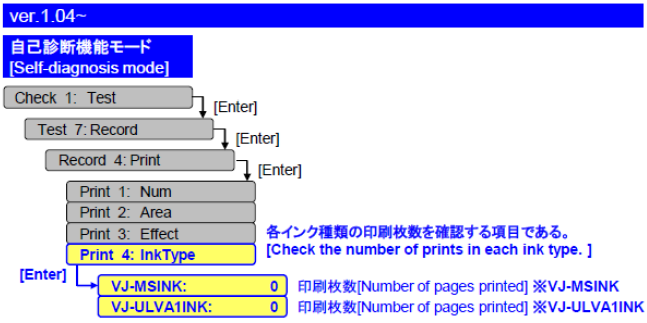

- Diagnostic menu: added the menu (Test/Record/Print/Ink Type) to show the number of pages printed for each ink type
Release date: 28 july 2016
1.03
Changed items
- Modified the network configuration setting method, the network configuration setting is available from VSM
- Add new PQ command: 360dpi x 1080dpi
-
Add the notification function on the remaining roll media status
-
Add menu which allows to specify the front feed length prior to media cutting
Diagnostics mode

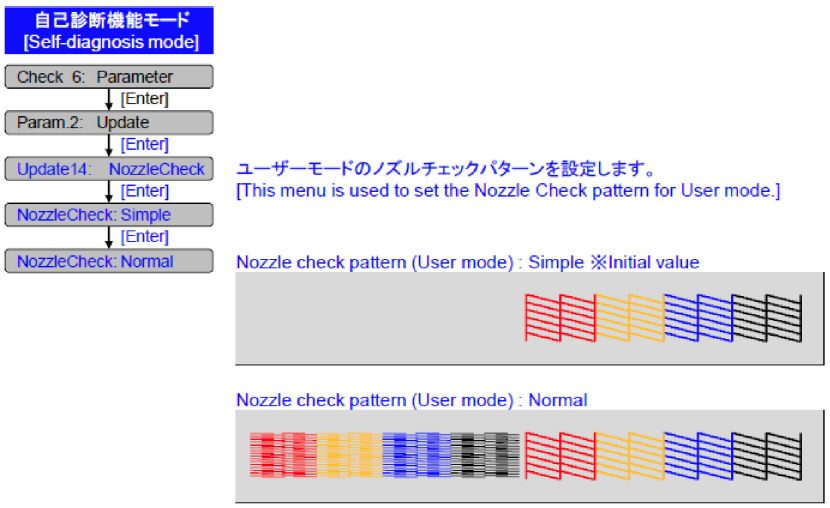

- Added menu to change the nozzle check pattern for user mode

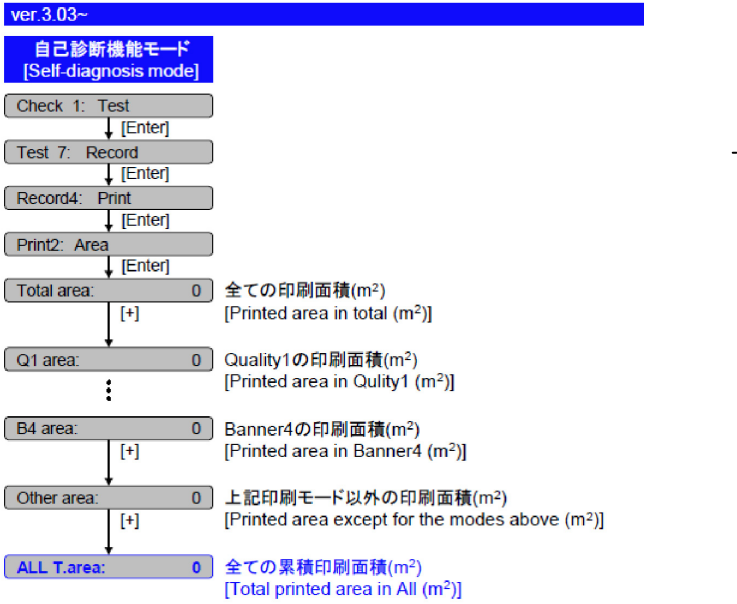

- Add all accumulated print areas
- Add the menu which automatically initializes the head unit life counter after head rank input
- Maintenance menu update
- Add average jetting number menu

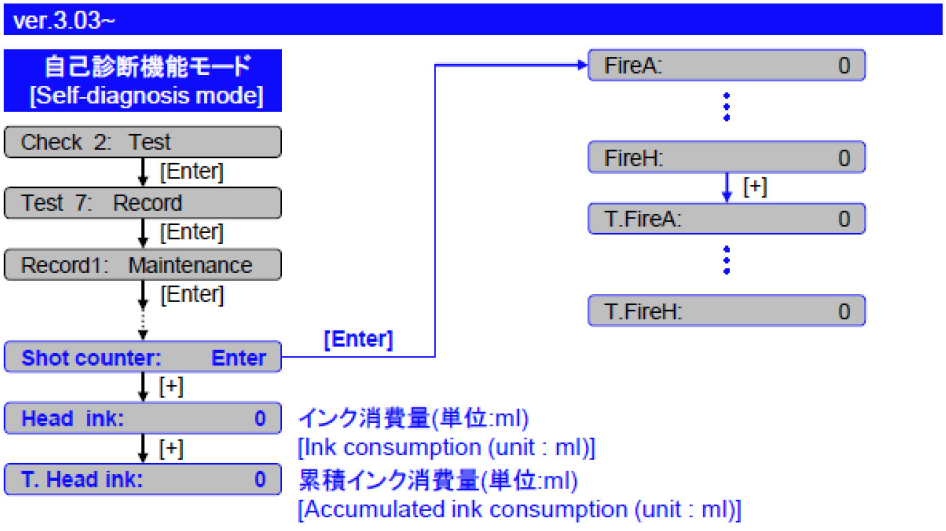

- Add ink amount consumption
Release date: 7 july 2015
1.02
Changed items
- Standby heat menu: setting “off” is added
- Additional functionality for error led: when lever is up while cover is open, the error led lights up as a warning
- The “palette” job can be printed in “fast” print mode; fast = 720x1080 dpi, bidir, 320 cps
- “Start feed” menu added: before printing, the printer rewinds or feeds forward a distance specified by the set value, range [-10mm, +500mm]

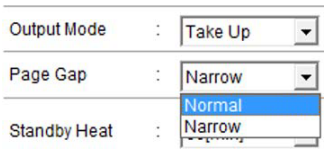

- “Page gap” menu added: the margin between print jobs can be changed.
Note
|
Bug fixes
- When ink end occurred while in sleep mode, a buzzer signal becomes active. This buzzer signal could not be stopped, this has been solved.
