We added a new spare part to our spare parts list: DG-47098 Diaphragm pump Assy (With Tube).
The waste ink tube which is connected between the diaphragm pump and the fitting cannot be reused when replacing the diaphragm pump Assy.

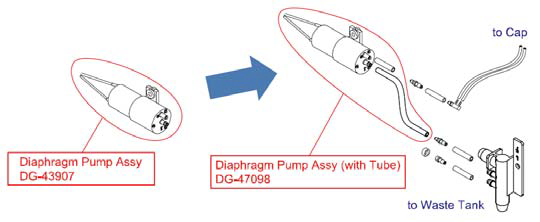

However the existing spare parts: DG-43907 diaphragm pump Assy does not include the waste ink tube. Therefor we added the new spare part which includes waste ink tube.
(DG-43907 Diaphragm pump Assy: without Tube)
- Target model: VJ-1617H/1626UH/628/426UF/1638UH
- New spare parts: DG-47098 Diaphragm Pump Assy (With Tube)
- About new spare part “DG-47098”
DG-47098 comes with 1 piece of waste ink tube with a total length off 200mm. In the table below you will find the required tube length.
Please cut the tube to the required length and replace the tube when replacing the diaphragm pump.
Reference:
| Model |
INLET |
OUTLET |
Total |
| VJ-1617H | 25mm | 130mm | 155mm |
| VJ-1626UH | 25mm | 92m | 117mm |
| VJ-628 | 24mm | 120mm | 144mm |
| VJ-426UF | 24mm | 120mm | 144mm |
| VJ-1638UH | 25mm | 165mm | 190mm |
Article changes
Revision 1.0 : 30 November 2016 - Initial release
