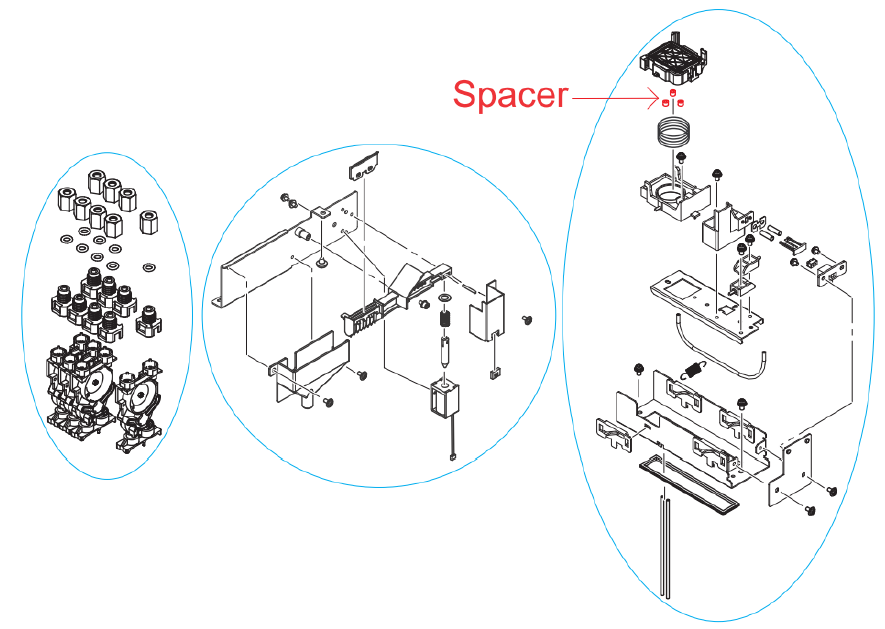

In order to improve the fixation strength of the tubes on the caps a spacer ring has been added to the cap tube of the UV machines.
The spare part codes, periodic maintenance kits and the cap head configurations were changed.
More information listed below.
Note: You do not have to replace these parts immediately. When replacement is due, please replace them with the new dedicated spare parts.
New registered spare parts
| Code | Name | Figure | Photo | Model |

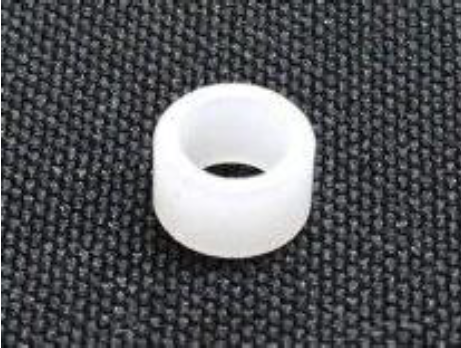

| DG-47558 | Spacer (100 pieces) |
|
|
VJ-426UF VJ-626UF VJ-1626UH VJ-1638UH |
Replaced Parts
BEFORE
| Code | Name | Figure | Note |

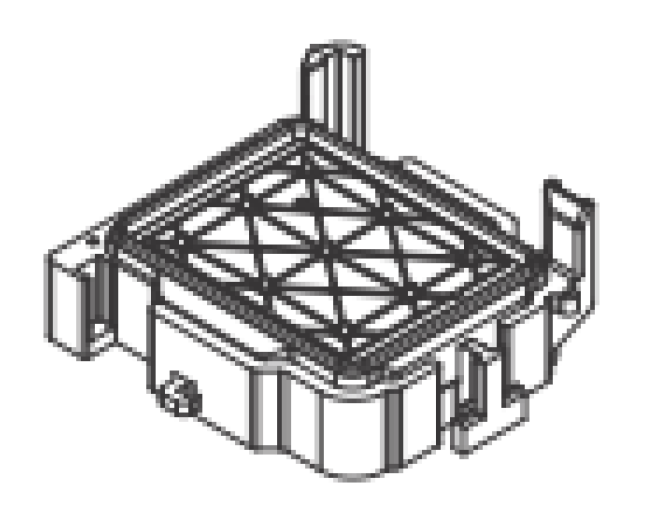

| DG-41179 | Cap Head Assy |
|
Cap Head x 1 |
AFTER
| Code | Name | Figure | Note | Model |

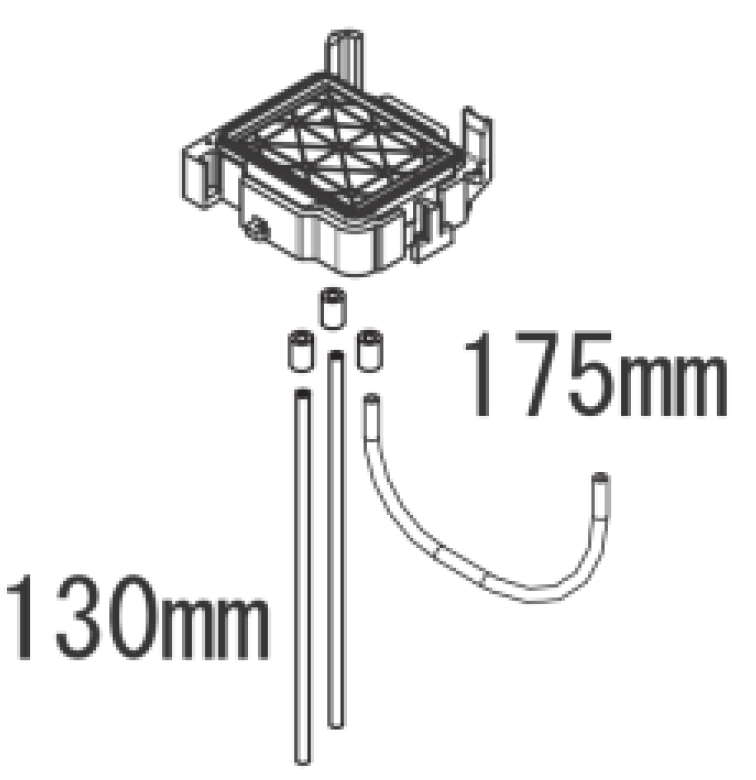

| DG-48134 | Head Cap Assy |
|
Cap Head x 1 Spacer x 3 Tube 130mm x 2 Tube 175mm x 1 |
VJ-426UF VJ-626UF |

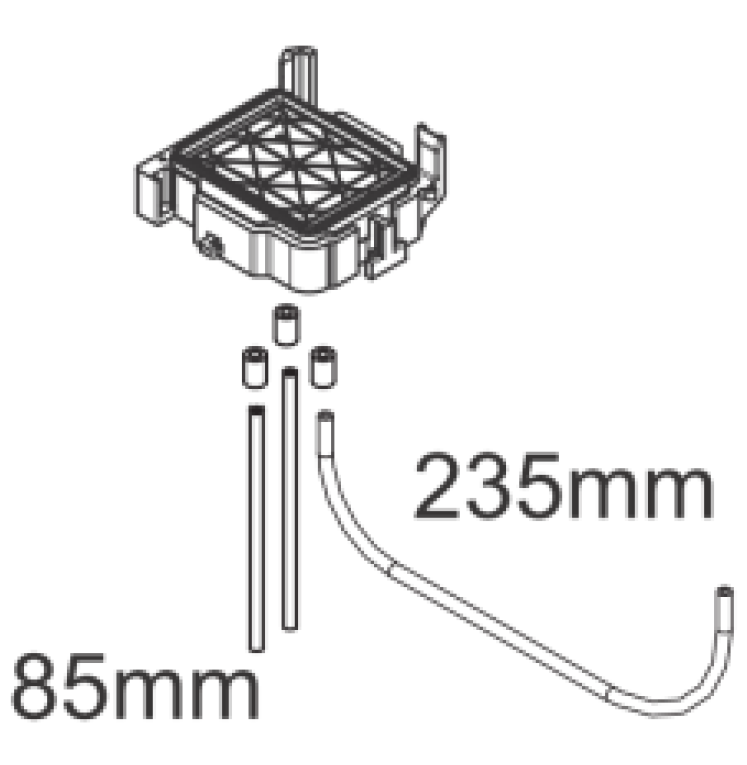

| DG-48181 | Head Cap Assy (1626) |
|
Cap Head x 1 Spacer x 3 Tube 85mm x 2 Tube 235mm x 1 |
VJ-1626UH |

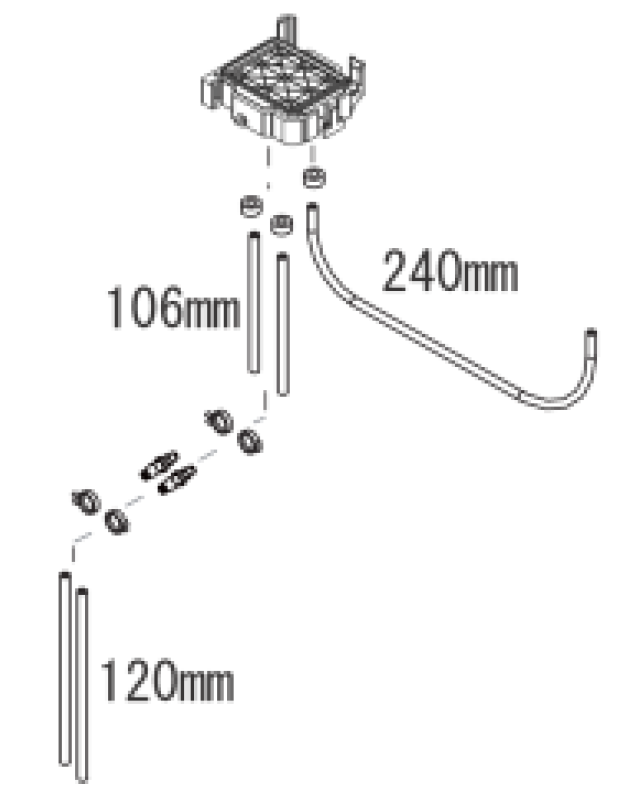

| DG-47545 | Cap Assy (1638UH) |
|
Cap Head x 1 Spacer x 3 Tube 120mm x 2 Tube 106mm x 2 Tube 240mm x 1 1 fitting x 2 Cable Tie x 8 |
VJ-1638UH |
| DG-49594 | Cap Assy (1638UR) | No changes, spacers were already standard included in assy since first model introduction | No changes, spacers were already standard included in assy since first model introduction | VJ-1638UR |
BEFORE
| Code | Name | Note | Model |

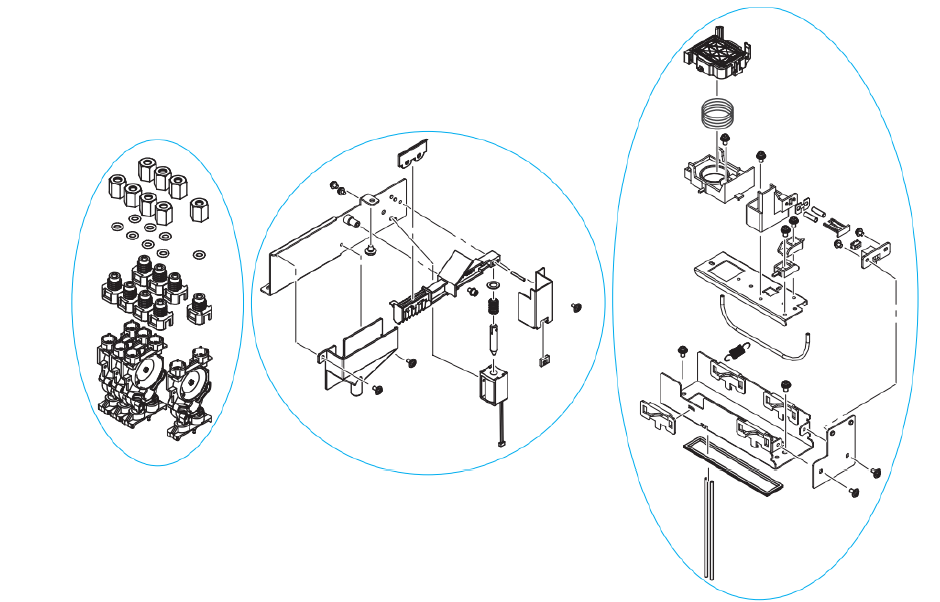

| DG-44737 | VJ-628 Periodic Maintenance Kit | Without the spacer under the cap | VJ-628 VJ-628X VJ-426UF |
 |
|||
AFTER
| Code | Name | Note | Model |
| DG-44737 | VJ-628 Periodic Maintenance Kit | Without the spacer under the cap | VJ-628 VJ-628X |
|
|||
AFTER
| Code | Name | Note | Model |

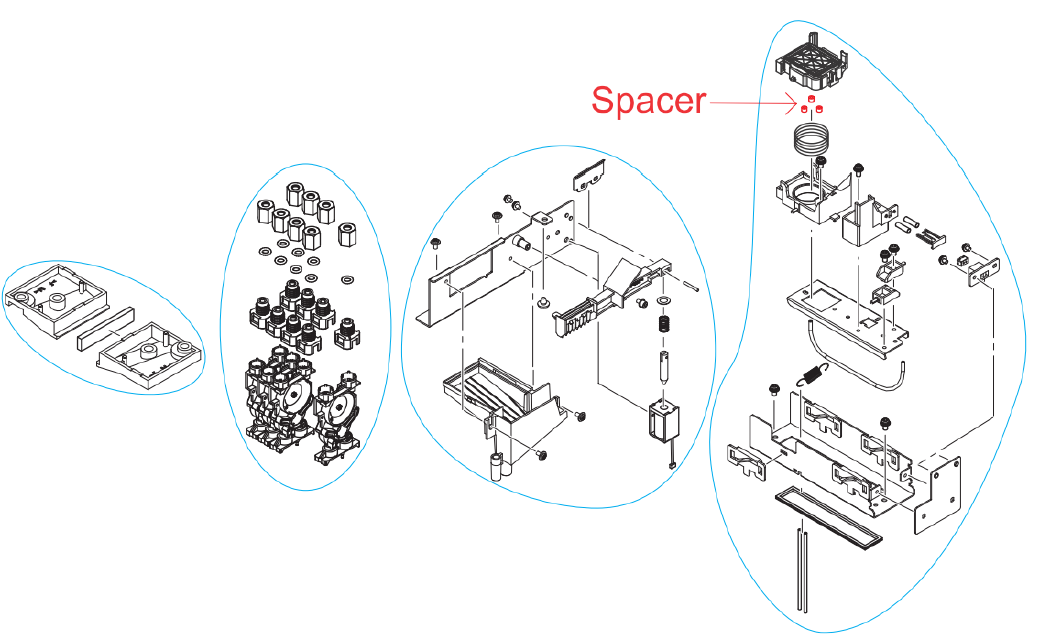

| DG-47748 | VJ-426UF_Periodic Maintenance Kit_Assy-2 | With the spacer under the cap | VJ-426UF VJ-626UF |
BEFORE
| Code | Name | Note | Model |

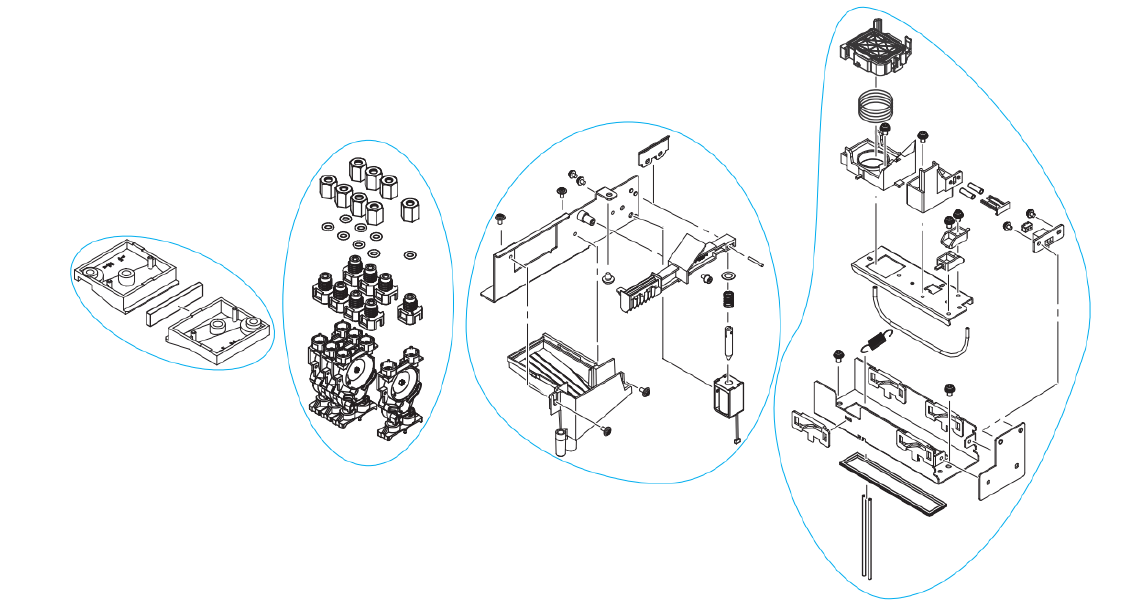

| DG-44302 | VJ-1626UH Regular Maintenance Assy | Without the spacer under the cap |
VJ-1626UH
|
AFTER
| Code | Name | Note | Model |
| DG-47747 | VJ-1626UH Periodic Maintenance Kit Assy-2 | With the spacer under the cap | VJ-1626UH |
BEFORE
| Code | Name | Note | Model |
| DG-47909 | Capping Station Assy-2 | With the spacer under the cap | VJ-1638UH |
AFTER
| Code | Name | Note | Model |

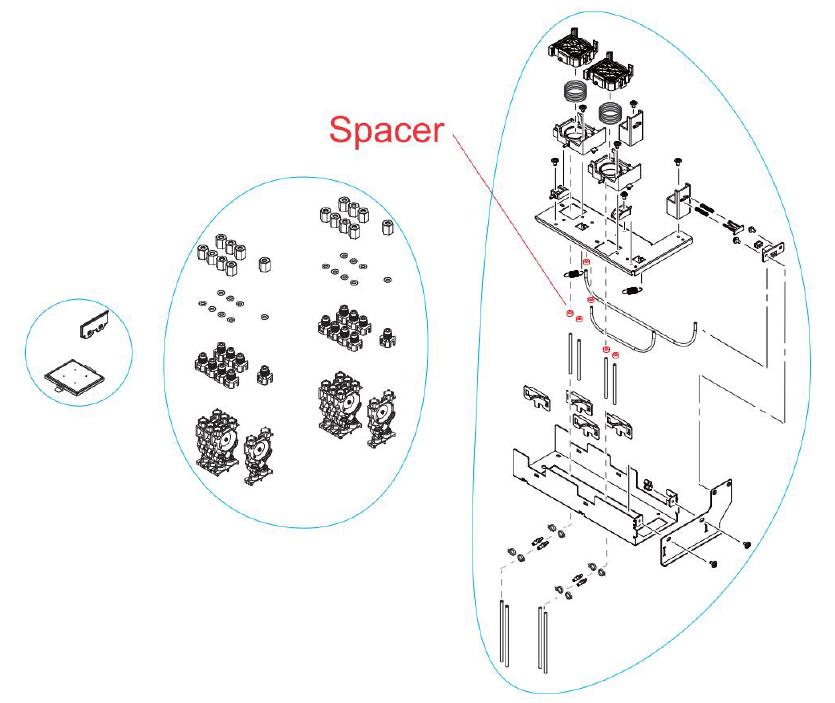

| DG-47766 | VJ-1638UH Periodic Maintenance Kit-2 | With the spacer under the cap | VJ-1638UH |
Article changes
Revision 1.0 : 03 November 2017 - Initial release
Revision 1.1 : 01 September 2020 - Added VJ-1638UR information
