TIB720 - New Introduction part numbers + Replacement procedure cursor roller strips

The roller strips and film between the roller strip and Y rail are now available as a spare part.
Please be aware that these spare parts have different codes depending on the machine model.

Further in this technical information bulletin you will find the necessary information on how to replace the cursor roller strip.



Spare Part Code	Name	Contents
DG-47164	Roller Strip Assy (A1)	Roller strip (A1)	1 piece	0.3mm
		Roller strip film (A1)	1 piece	0.2mm
DG-47165	Roller Strip Assy (A0)	Roller strip (A0)	1 piece	0.3mm
		Roller strip film (A0)	1 piece	0.2mm
DG-47166	Roller Strip Assy (1304)	Roller strip_VJ1304	1 piece	0.3mm
		Roller strip film_VJ1304	1 piece	0.2mm
DG-47167	Roller Strip Assy 13 (t0.5)	Roller strip_VJ13	1 piece	0.3mm
		Roller strip film_VJ13	1 piece	0.2mm
DG-47168	Roller Strip Assy 16 (t0.5)	Roller strip (64)	1 piece	0.5mm
		Roller strip film_VJ16 (0.1)	1 piece	0.1mm
DG-47169	Roller Strip Assy 16 (t0.3)	Roller strip film_VJ16	1 piece	0.2mm
		Roller strip_VJ16	1 piece	0.3mm
DG-47170	Roller Strip Assy 1924 (t0.5)	Roller strip19	1 piece	0.5mm
		Roller strip film_VJ19 (0.1)	1 piece	0.1mm
DG-47171	Roller Strip Assy 1924 (t0.3)	Roller strip_VJ19 (0.3)	1 piece	0.3mm
		Roller strip film_VJ19 (0.2)	1 piece	0.2mm
DG-47172	Roller Strip Assy 1938	Roller strip (19W9)	1 piece	0.3mm
		Roller strip film (19W9)	1 piece	0.2mm
DG-47173	Roller Strip Assy 26	Roller strip (26W9t0.3)	1 piece	0.3mm
		Roller strip filmW9_VJ26	1 piece	0.2mm

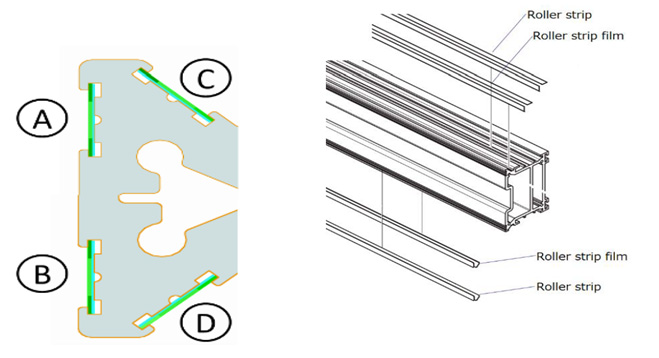

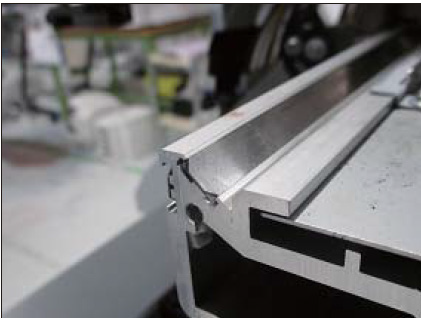

Depending on model and serial number, pay very close attention that the steel strips are being mounted in the following correct order:





Each strip contains a PET film + 1 steel strip. The PET film is to be put in between the Y-rail and the steel strip.
After replacing the strip, the strips can be lubricated with the Y-rail cleaner and special grease: RAIL-CLEANER





Mount spare part strips in the following correct order for units with these serial numbers:



Note Film is not installed in production.





Mount spare part replacement strips in the following correct order, for units with the following serial numbers:



Note Film is not installed in production.



Model	Serial numbers	Code	Description	Mounting order
VJ-628	HHIU000001 or higher	DG-47164	Roller Strip Assy (A1)	ABCD
VJ-628X	HQ1U000001 or higher	DG-47165	Roller Strip Assy (A1)	ABCD
VJ-426UF	HI3U000001 or higher	DG-47164	Roller Strip Assy (A1)	ABCD
VJ-1204E	EY4E001944 or higher	DG-47165	Roller Strip Assy (A0)	ABCD
VJ-1324	GP5U000556 or higher	DG-47167	Roller Strip Assy (13)	ABCD
VJ-1324X	HT5U000001 or higher	DG-47167	Roller Strip Assy (13)	ABCD
VJ-1604X	IF6U000001 or higher	DG-47168	Roller Strip Assy 16 (t0.5)	AB
		DG-47169	Roller Strip Assy 16 (t0.3)	CD
VJ-1604W1	From FI6C006931	DG-47168	Roller Strip Assy 16 (t0.5)	AB
		DG-47169	Roller Strip Assy 16 (t0.3)	CD
VJ-1617H	From GY6U000101	DG-47168	Roller Strip Assy 16 (t0.5)	AB
		DG-47169	Roller Strip Assy 16 (t0.3)	CD
VJ-1624	From GO6U001942	DG-47168	Roller Strip Assy 16 (t0.5)	AB
		DG-47169	Roller Strip Assy 16 (t0.3)	CD
VJ-1624X	HU6U000001 or higher	DG-47168	Roller Strip Assy 16 (t0.5)	AB
		DG-47169	Roller Strip Assy 16 (t0.3)	CD
VJ-1624W	From GL6U000854	DG-47168	Roller Strip Assy 16 (t0.5)	AB
		DG-47169	Roller Strip Assy 16 (t0.3)	CD
VJ-1624WX	HV6U000001 or higher	DG-47168	Roller Strip Assy 16 (t0.5)	AB
		DG-47169	Roller Strip Assy 16 (t0.3)	CD
VJ-1626UH	HE6U000001 or higher	DG-47168	Roller Strip Assy 16 (t0.5)	AB
		DG-47169	Roller Strip Assy 16 (t0.3)	CD
VJ-1638	From GQ6U000568	DG-47168	Roller Strip Assy 16 (t0.5)	AB
		DG-47169	Roller Strip Assy 16 (t0.3)	CD
VJ-1638X	HF6U000001 or higher	DG-47168	Roller Strip Assy 16 (t0.5)	AB
		DG-47169	Roller Strip Assy 16 (t0.3)	CD
VJ1638W	From GR6U000911	DG-47168	Roller Strip Assy 16 (t0.5)	AB
		DG-47169	Roller Strip Assy 16 (t0.3)	CD
VJ1638WX	HG6U000001 or higher	DG-47168	Roller Strip Assy 16 (t0.5)	AB
		DG-47169	Roller Strip Assy 16 (t0.3)	CD
VJ-1924W	GW7U000001 or higher	DG-47170	Roller Strip Assy 1924 (t0.5)	AB
		DG-47171	Roller Strip Assy 1924 (t0.3)	CD
VJ-1924W-K1	GW7C000001 or higher	DG-47170	Roller Strip Assy 1924 (t0.5)	AB
		DG-47171	Roller Strip Assy 1924 (t0.3)	CD
VJ-1638UH	ID6U000001 or higher	DG-47172	Roller Strip Assy 1938	ABCD
VJ-1938X	II7U000001 or higher	DG-47172	Roller Strip Assy 1939	ABCD
VJ-1938WX	HK7U000001 or higher	DG-47172	Roller Strip Assy 1940	ABCD
VJ-1938TX	HL7U000001 or higher	DG-47172	Roller Strip Assy 1940	ABCD
VJ-2628TD	From GHAU000093	DG-47173	Roller Strip Assy 26	ABCD
VJ-2638	From GXAU000200	DG-47173	Roller Strip Assy 26	ABCD
VJ-2638X	HXAU000001 or higher	DG-47173	Roller Strip Assy 26	ABCD



Replacement procedure

To replace the cursor roller strip in your machine, please follow this procedure step by step. Tools, Jigs & maintenance parts needed:



Name	Maintenance Part	Remarks
Cursor roller strip	-	-
Cursor roller strip film	-	-
Phillips Driver No.2	Commercially available	-
Hex wrench (3 mm)		-
Acetate tape		-
non-woven cloth		-
Tension gauge		for measuring Max: 2N (204gf)
Ethanol		-
Thread locker	-

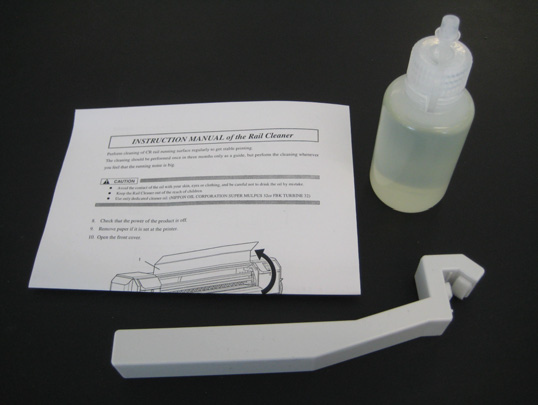

Oil kit for roller strips	KY-14100	This kit contains: Drop dispenser bottle Lubricant/oil for Y-rai lRailcleaner tool
Railcleaner tool	RAIL-CLEANER	-
Steel belt Tension Attachment	DG-43197	-



Note This procedures describes the replacement procedure on a VJ-1938WX. In case you have a different machine, please refer to the maintenance manual of your machine.



Caution When replacing the steel belt, make sure to wear gloves. Prevent the belt from bending or from contamination with dust or other objects. Doing so may cause steel belt breakage.  Be careful not to cut your hands on the steel belt.



Step 1: Remove the covers.

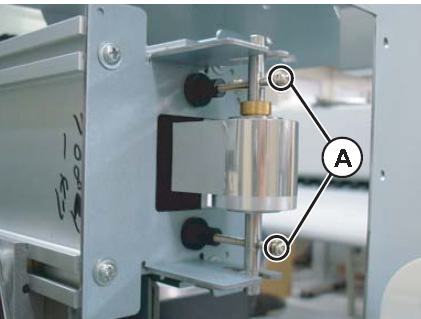

Step 2: Loosen the steel belt adjustment screws (x 2).
            A: Pan-head screw with spring washer and flat washer M3 x 40\



Caution When you loosen the steel belt adjustment screw, make sure to unscrew the upper and lower screws the same amount. This makes the adjustment easy after replacing the steel belt. Loosen the steel belt adjustment screws sufficiently (about 5 times). If not done properly, the steel belt may cause damage when retaining the steel belt to the carriage.

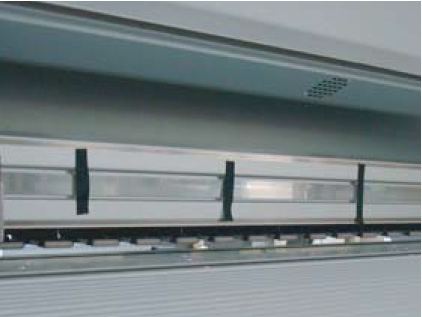

Step 3: In order to prevent the steel belt from falling, when moving the carriage to the left (opposite side of the origin), fix steel the belt with acetate tape.

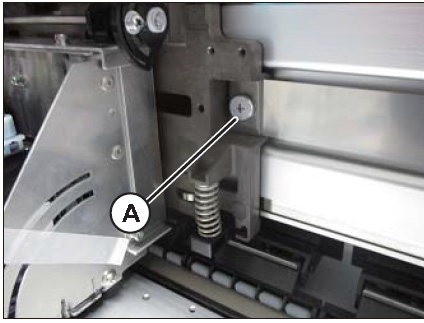

Step 4: Remove the screw retaining the steel belt (origin side).
A: Belt fixing screw

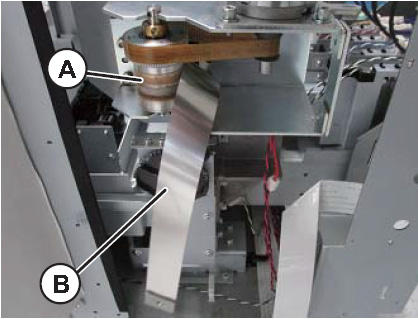

Step 5: Remove the steel belt from the CR speed deceleration pulley.
A: CR speed deceleration pulley
B: Steel belt

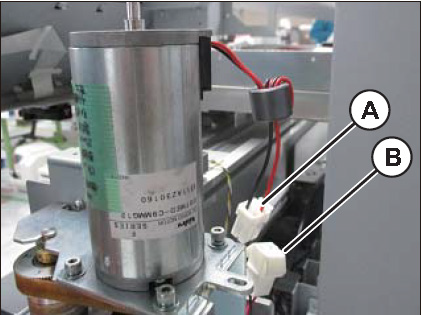

Step 6: Remove the CR motor cable from the CR motor.
A: CR motor
B: CR motor cable

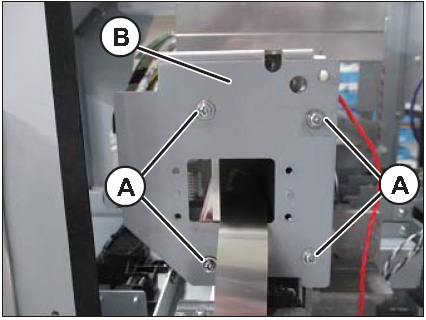

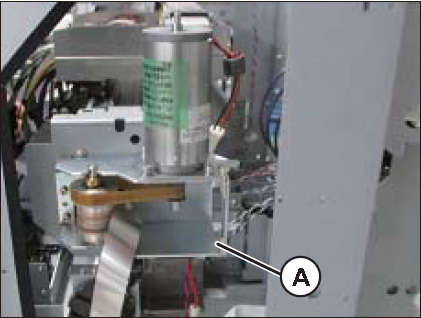

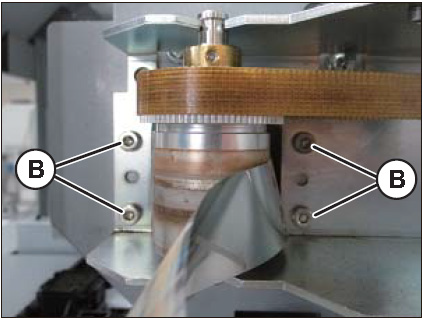

Step 7: Remove the screws (x4).

A: CR motor mounting plate
B: Hexagon socket screw M4 x 6



Caution Be careful not to damage the CR speed deceleration pulley. Doing so may affect print result.

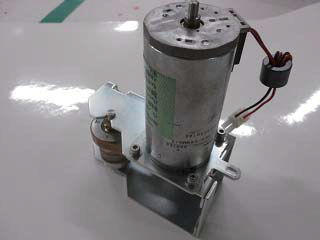

Step 8: Remove the CR motor mounting plate.

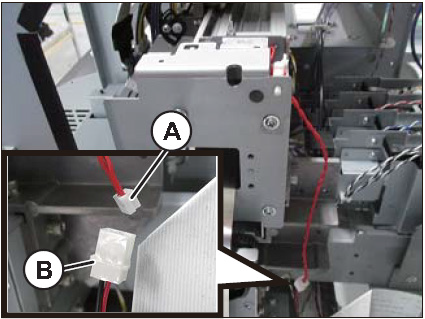

Step 9: Remove the CR lock solenoid cable assy from the carriage lock solenoid.
A: cable of carriage lock solenoid
B: CR lock solenoid cable



Step 10: Remove the screws (x4).
A: Cup screw M3x4 Zn-CM2
B: Y driving base



Step 11: Remove the Y driving base.



Caution Be careful not to damage the steel belt. Doing so may affect print result.



Step 12: Remove the cursor roller strip.
A: Cursor roller strip
B: Cursor roller strip film

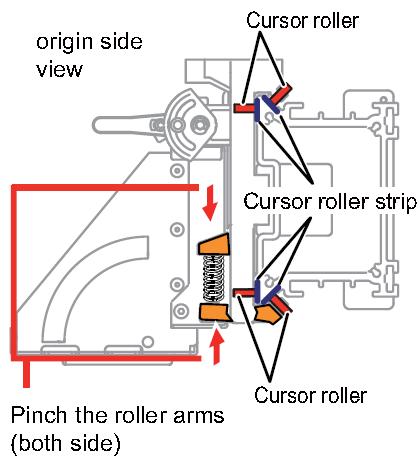

Caution Pinch both cursor roller arms to rise the cursor rollers Remove the cursor roller strip and film in the direction of the arrow.

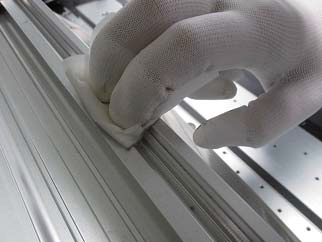

Step 13: Wipe off the cursor roller strip holder with ethanol.

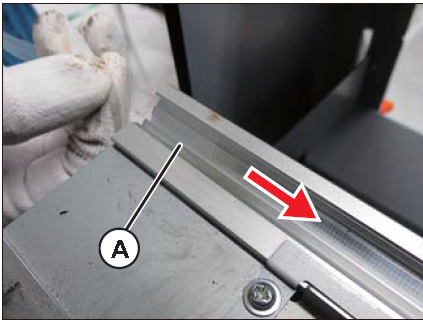

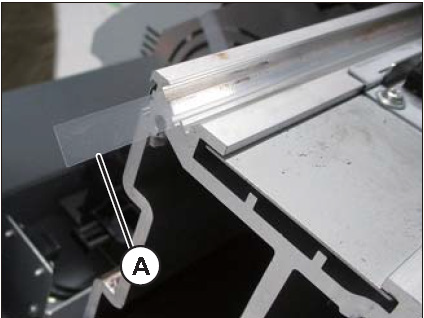

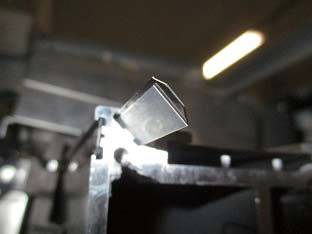

Step 14: Insert the cursor roller strip film.
A: Cursor roller strip film



Note Insert it in the direction of the arrow. Do not fully insert it.The film should stick out for 2cm from the folder.

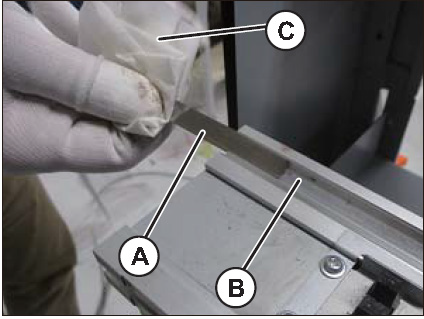

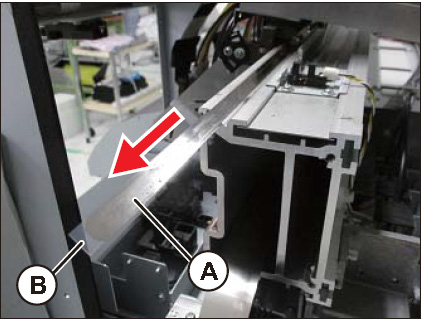

Step 15: While holding the film, insert the cursor roller strip as shown below.
A: Cursor roller strip
B: Cursor roller strip film
C: non-woven cloth (with ethanol)



Note Insert it in the direction of the arrow. Do not fully insert it.The film should stick out for 2cm from the folder.



Step 15: While holding the film, insert the cursor roller strip as shown below.
A: Cursor roller strip
B: Cursor roller strip film
C: non-woven cloth (with ethanol)



Note To wipe off the cursor roller strip, hold it with non-woven cloth (with ethanol) Insert the strip on the film.Check if the strip and film were inserted as shown.



Step 16: Fully insert the cursor roller strip and film.



Note Follow the same procedures to replace the other strips.

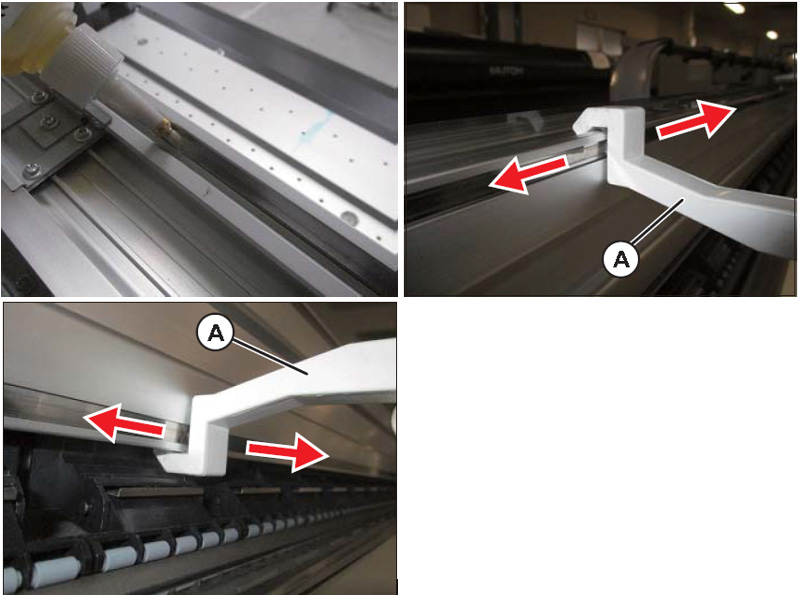

Step 17: Apply the oil to the cursor roller strip.
A: Jig for oil



Step 18: To reassemble unit, reverse the removal procedure.



Note Leave the maintenance cover L off for further adjustment.



Steel belt tension adjustment



Step 1: Open the front cover.

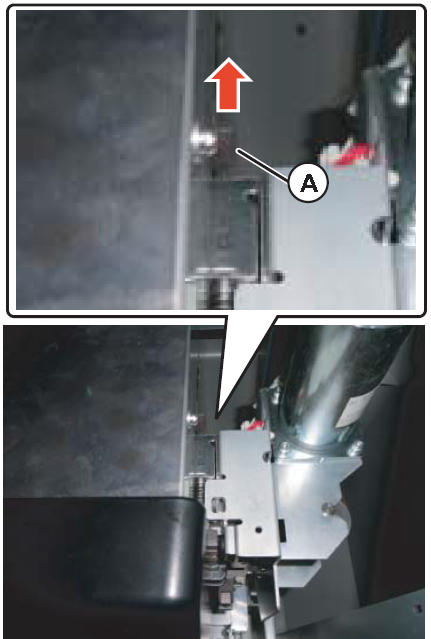

Step 2: Push the carriage lock towards the rear section (in the direction of the red arrow) and release lock.
A: Carriage lock



Step 3: Move Carriage to the left (opposite side of the Origin).



Note To enable the head lock again, the carriage lock does not need to be moved. Move the carriage towards the origin until the carriage is fixed.



Step 4: Assemble the tension gauge and the steel belt tension attachment.

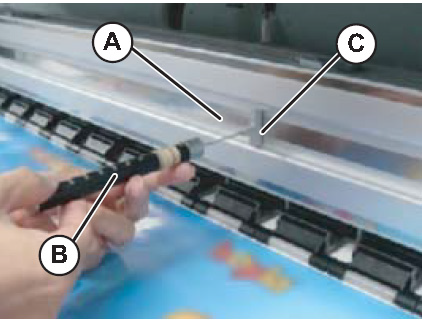

Step 5: Press the tension gauge against the centre of the steel belt.
A: Steel belt
B: Tension gauge
C: Steel belt tension attachment



Step 6: Press the jig until the steel belt touches the Y rail, then gradually lower the pressure.
Value must be within the defined value when the steel belt and the Y rail are apart.



Note The steel belt tension specification is 0.98N+0.09N (100gf +10gf). The range within which the steel belt may move up or down on the pulley must be1 mm or less.

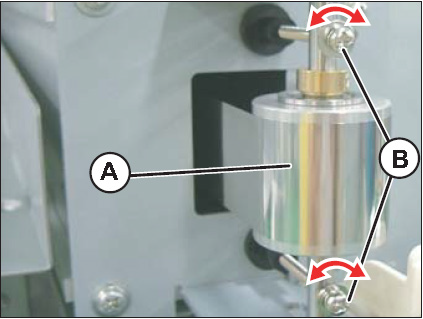

Step 7: If the tension of the steel belt is not within specification, adjust the tension with the steel belt tension screw.
A: Steel belt
B: Steel belt tension screw



Caution To adjust the steel belt adjustment screw, turn the top and bottom screws a same amount. If the CR driven pulley is tilted, the steel belt may be damaged duringoperation.

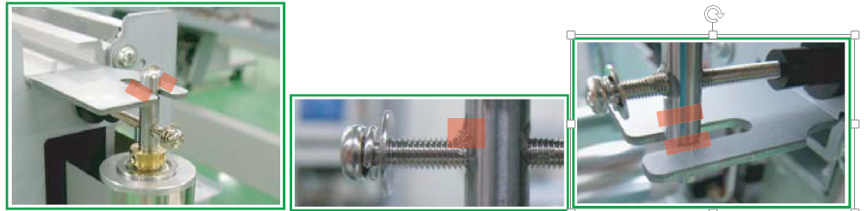

Step 8: Apply thread-lock on area indicated in red as below.



Step 9: Move the carriage and confirm that the steel belt does not run off the CR driven pulley.



Step 10: To reassemble unit, reverse the removal procedure.



Article changes

Revision 1.0 : 22 March 2017 - Initial release
Revision 2.0 : 04 July 2018 - Corrected part number for VJ-426UF
