TIB803 - Replaceable wiper, wiper assy & periodical maintenance kits for VJ-426UF, VJ-626UF and VJ-1626UH

In the past, the wiper assy was not available as a separate spare part item for these VJ models.

A new (revised) wiper assy has now been introduced and available as separate spare part, starting from these serial numbers:

  • VJ-426UF: HI3U000979
  • VJ-626UF: IQ2U000147
  • VJ-1626UH: HE6U000233



The new assy now includes modified wiper-blade which can easily be replaced by the end-user.



Wiper assy:

New replacable wiper holder assy part numbers
Usable on VJ-426UF, VJ-626UF Usable on VJ-1626UH
Y2JAT6CaWCLkPTvukkPWJ5PldPIeh7IJlQ oJy0XxVIxF21r14hPpFzlO0soWSQpBPOPQ
DG-49070 DG-49069

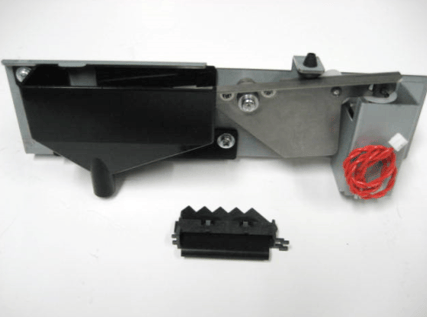

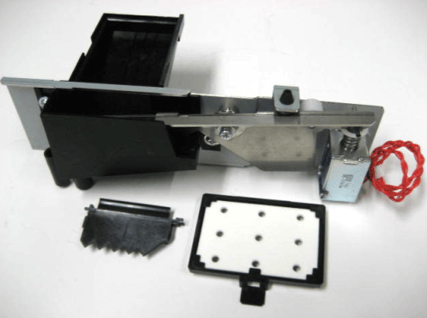

Wiper Assy Wiper Assy



Wiper supply part numbers
Usable on VJ-426UF, VJ-626UF & VJ-1626UH
Nt5cJREhwKx5Q49TJ4MLuLLHwZVNrpSXPA d0UQDs8qkaj3rNom0rLCn69hHoxSsb6vxA
VJ-WIP DG-41001
Replacable wiper (in holder) Replacable wiper (rubber only)

In case it's not required to replace the holder, the separate rubber wiper is still available as separate sparepart



If you wish to upgrade older serial numbers to this new replaceable wiper holder you can purchase this new wiper assy.
These new part numbers will be included in the next release of the spare part lists. The new wiper holders will also affect the contents of the periodical maintenance kits.



Periodical maintenance kits



New periodical maintenance kits have been defined that include the VJ-WIP instead of the old fixed wiper. Beware that the complete wiper assy itself will no longer be included in the kit.



Periodical maintenance kit for VJ-426UF and VJ-626UF
Old part number New part number
5TZSR6zkjYLZWmouYwFtEYYi43FJeqIYyA BQdi_Y78rPQg_Jk5mwG9sTcYtdFiCKwENQ
DG-47748 DG-49061

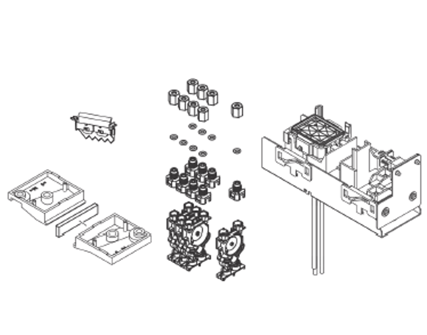

VJ-426UF Periodic Maintenance Kit_Assy-2 VJ-426UF Periodic Maintenance Kit Assy 3



Periodical maintenance kit for VJ-1626UH
Old part number New part number
CjXBUb_f2wrrq_7Gt0Ag_a3hs5Hbpd2PfA rma5lift3NJtYjyXqvx_SiStgJp5cbQ9Ag
DG-47747 DG-48701

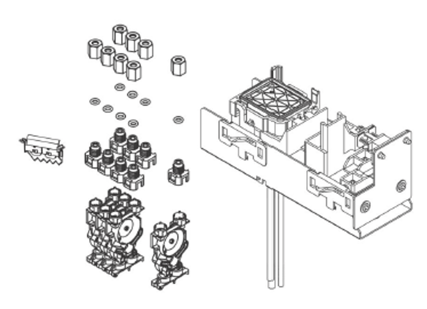

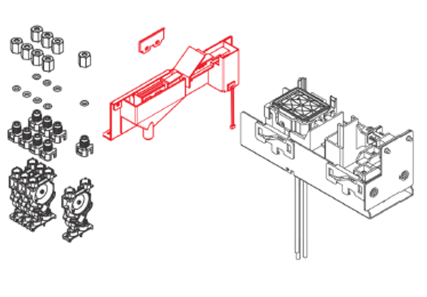

VJ-1626UH Periodic Maintenance Kit Assy 2 VJ-1626UH Periodic Maintenance Kit Assy 3



The old periodical maintenance kits will remain available until depletion of stock and can still be ordered for units that still have the older wiper assy installed.

Article changes



18-01-2019 - Rev 1.0: Article created

18-06-2020 - Rev 2.0: Periodical maintenance kits have been adapted
