(old)TIB607 - Switching from UMS or MSU to Eco Ultra ink for ValueJet (internal info only)

This article is a revised bulletin based on the old and obsolete TIB524. This document explains step by step how to switch from Universal Mild Solvent Inks (UMS) to Eco Ultra inks for 1st GEN ValueJet printers.


Therefore, this article is not publicly shared but should internally be handled case-by-case only.



Important
  • If ink cassettes are not recognized by the printer. Please remove all cassettes and re-insert them one by one.
  • Make sure to follow this sheet step by step.
  • When using Mild Solvent (UMS/MSU) ink in your printer, make sure the latest firmware is installed before starting the ink switch procedure.
  • Be aware that when working with Mild Solvent (UMS/MSU) ink, adequate ventilation or air purification is recommended.



220/440ml Eco Ultra ink cassette set-up



When working with a VJ-1204, VJ-1304, VJ-1604 use 220ml cassettes:





When working with a VJ-1614 use 220ml or 440 ml cassettes:



1L ink adapter Eco Ultra ink set-up



These models are obsolete and not designed to be used with 1L ink adapters. Use cassettes instead.



Managing VOC's


The Solvent selection in our new UMS inks was put together with a very responsible mind guarding an optimum balance between performance, the operator health & safety and environmental responsibility.

You have to take into account that also a printer with UMS ink will contribute to the exhaust in the working environment, as it is the case for the other installed equipment.

  • Local health & safety regulations on exhaust vary from country to country. For UMS inks, the ventilation requirements are identical to those of Eco Ultra inks. In case of doubt, please contact a local consultancy agency.
  • The size of the room in which the production equipment is setup has a big impact on the concentration levels of the different exhaust of the customer’s production equipment.
  • With any equipment producing exhaust, it is recommended to separate the production environment from the finishing environment.



Terminology used in this document

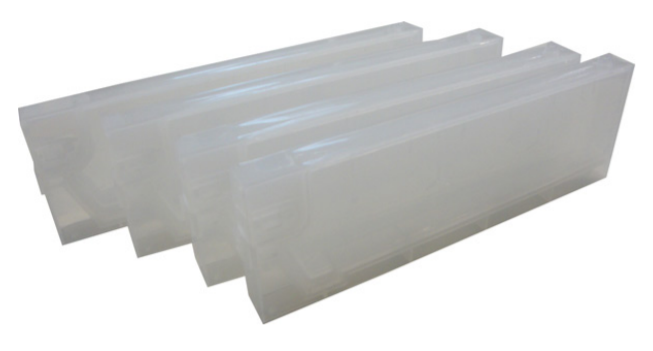

  • Cassette
    Cassette
    • Working on VJ-1204, VJ-1304, VJ-1604(X), VJ-1614, VJ-1324(X), VJ-1624(X), VJ-1638(X) or VJ-2638(X)

  • Ink pack adapters
    • Ink adapters are not supported on 1st gen ValueJets



Background information - Moving from UMS to Eco Ultra

  • No flushing liquid is required
  • Uni- & Bidirectional alignments need to be verified
  • UMS and Eco Ultra are not 100% chemically compatible. Mixing large quantities of ink is not recommended
  • Printers without subtanks VJ-1204, VJ-1304, VJ-1324(X):
    • No "Long Store" required
    • Eco Ultra can be loaded immediately after UMS



Switching from UMS to Eco Ultra cassette set-up



For VJ-1204, VJ-1304, VJ-1604



Please note that some of the above mentioned models are officially obsolete in spare parts. These models are no longer technically supported as well. For more information about these concerned units, please read our article End of life for technical support & spare parts - Overview



Note:

  • The VJ-1204, VJ-1304 are not fit to support 440 ml ink cassettes. However, 440 ml Eco Ultra ink cassettes will not be refused by the printer meaning that 440 ml cassettes can physically be be mounted into the printer and be recognized.
    • Please note however that for 440 ml Eco Ultra ink cassettes, the ink level detection and monitoring will not happen correctly in your printer because of the length of the cartridges, they may bend backwards.
    • So In combination with the 440 ml ink cassettes on these 2 mentioned models, the following may possibly occur:
      • Run out of ink without being detected by the printer.
      • The printer may give the ink empty message too early

If the printer is running on very old firmware, make sure to update the heater firmware first before the main firmware before starting the ink-conversion!



When you want to switch from UMS to Eco Ultra ink you need to order the following items:



Part N° Description Qty needed
For VJ-1204, VJ-1304, VJ-1604
VJ-MSI3A-BK220 Eco Ultra ink cassette Black (220ml) 1x
VJ-MSI3A-YE220 Eco Ultra ink cassette Yellow(220ml) 1x
VJ-MSI3A-MA220 Eco Ultra ink cassette Magenta (220ml) 1x
VJ-MSI3A-CY220 Eco Ultra ink cassette Cyan (220ml) 1x
For VJ-1614
VJ-MSI3A-BK22
or
VJ-MSI3A-BK44		 Eco Ultra ink cassette Black (220ml)
or
Eco Ultra ink cassette Black (440ml)		 1x
VJ-MSI3A-YE22
or
VJ-MSI3A-YE44		 Eco Ultra ink cassette Yellow (220ml)
or
Eco Ultra ink cassette Yellow (440ml)		 1x
VJ-MSI3A-MA22
or
VJ-MSI3A-MA44		 Eco Ultra ink cassette Magenta (220ml)
or
Eco Ultra ink cassette Magenta (440ml)		 1x
VJ-MSI3A-CY22
or
VJ-MSI3A-CY44		 Eco Ultra ink cassette Cyan (220ml)
or
Eco Ultra ink cassette Cyan (440ml)		 1x



Furthermore you also need to order a periodical maintenance kit of the corresponding machine.



Please follow the procedure as described below



Note
  • During ink filling:
    • Do not open the front cover.
    • Do not push the media loading lever backward.



Note
  • If a nozzle check is printed immediately after initial ink replenishment is complete, the following results may occur:
    • Printed lines become blurred.
    • The data is partially not printed.
  • Before starting this operation, make sure to perform all necessary maintenance demanded weekly.
  • If there is no improvement in the print result, perform 1 or 2 normal cleanings and leave the printer unused for a while. Afterwards, perform a nozzle check to verify if all nozzles are available



Important
  • In case a print head needs to be replaced, it's recommended to replace the print head after the ink-swicth has been completed and all ink-channels are properly rinced with the appropriate cleanings.




Verify if the latest firmware is installed


Select long store in the setup menu (user mode)


Remove UMS cassettes when asked


When asked cleaning cassettes, unplug the power cable


Plug power cable back in


Power on the printer


Insert new Eco Ultra cassettes when the printer asks "Insert Ink Cartridges"


Printer starts an ink charge



IMPORTANT

After completing the ink-switch, make sure to also do the periodical maintenance on the corresponding machine.





Switching from UMS set-up to 1L ink adapter Eco Ultra set-up



For VJ-1204, VJ-1304, VJ-1604, VJ-1614



These models are obsolete and not designed to be used with 1L ink adapters.  Use Eco Ultra cartridges instead.



Background information - Moving from MSU to Eco Ultra

  • Flushing liquid is required for removing MSU/UMS
  • Flushing liquid is required for Eco Ultra to remove MSU/UMS cleaning
  • Uni- & Bidirectional alignments need to be verified



Switching from MSU to Eco Ultra cassette set-up



When you want to switch from UMS to Eco Ultra ink you need to order the following items:



Part N° Description Qty needed
For VJ-1204, VJ-1304, VJ-1324, VJ-1604
VJ-LSINK1-CL44 (?? 1324 unsupported!)
(chips possibly incompatible)		 440ml UMS cleaning cassette 4x
VJ-MSI3A-CL220 220ml eco-solvent cleaning cassette 4x
VJ-MSI3A-BK220 Eco Ultra ink cassette Black (220ml) 1x
VJ-MSI3A-YE220 Eco Ultra ink cassette Yellow(220ml) 1x
VJ-MSI3A-MA220 Eco Ultra ink cassette Magenta (220ml) 1x
VJ-MSI3A-CY220 Eco Ultra ink cassette Cyan (220ml) 1x
For VJ-1614
VJ-LSINK1-CL44 (UMS = MSU CLN ??)
(chips possibly incompatible)		 440ml UMS cleaning cassette 4x
VJ-MSI3A-CL220 220ml eco-solvent cleaning cassette 4x
VJ-MSI3A-BK22
or
VJ-MSI3A-BK44		 Eco Ultra ink cassette Black (220ml)
or
Eco Ultra ink cassette Black (440ml)		 1x
VJ-MSI3A-YE22
or
VJ-MSI3A-YE44		 Eco Ultra ink cassette Yellow (220ml)
or
Eco Ultra ink cassette Yellow (440ml)		 1x
VJ-MSI3A-MA22
or
VJ-MSI3A-MA44		 Eco Ultra ink cassette Magenta (220ml)
or
Eco Ultra ink cassette Magenta (440ml)		 1x
VJ-MSI3A-CY22
or
VJ-MSI3A-CY44		 Eco Ultra ink cassette Cyan (220ml)
or
Eco Ultra ink cassette Cyan (440ml)		 1x



Furthermore you also need to order a periodical maintenance kit of the corresponding machine.



Please follow the procedure as described below



Note
  • During ink filling:
    • Do not open the front cover.
    • Do not push the media loading lever backward.



Note
  • If a nozzle check is printed immediately after initial ink replenishment is complete, the following results may occur:
    • Printed lines become blurred.
    • The data is partially not printed.
  • Before starting this operation, make sure to perform all necessary maintenance demanded weekly.
  • If there is no improvement in the print result, perform 1 or 2 normal cleanings and leave the printer unused for a while. Afterwards, perform a nozzle check to verify if all nozzles are available



Important
  • In case a print head needs to be replaced, it's recommended to replace the print head after the ink-swicth has been completed and all ink-channels are properly rinced with the appropriate cleanings.




Verify if the latest firmware is installed


Select long store in the setup menu (user mode)


Remove MSU cassettes when asked


When asked cleaning cassettes, use the UMS cleaning cassettes


Let the complete long store cycle finish


When the cycle is completed, the printer says "Wash Retry" select YES


Remove the UMS cleaning cassettes when asked


When asked cleaning cassettes, use the Eco Ultra cleaning cassettes


Let the complete long store finish


When the cycle is completed, the printer says "Wash Retry" select NO


Go to cleaning menu. Choose Initial Ink charge.


Insert new Eco Ultra cassettes when the printer asks "Insert Ink Cartridges"


Printer starts an ink charge



IMPORTANT

After completing the ink-switch, make sure to also do the periodical maintenance on the corresponding machine.



Switching from MSU to 1L ink adapter Eco Ultra set-up



For VJ-1204, VJ-1304, VJ-1604, VJ-1614



These models are obsolete and not designed to be used with 1L ink adapters. Use Eco Ultra cartridges instead.



Periodical maintenance

  • After completing the ink switch, proceed with a periodical maintenance for the corresponding machine. This kit contains all parts which have to be replaced:
    • Capping station
    • Wiper assy
    • Dampers (if available on the corresponding machine)
  • While proceeding with the periodical maintenance, make sure:
    • That the drain tubes are empty and free of ink residue

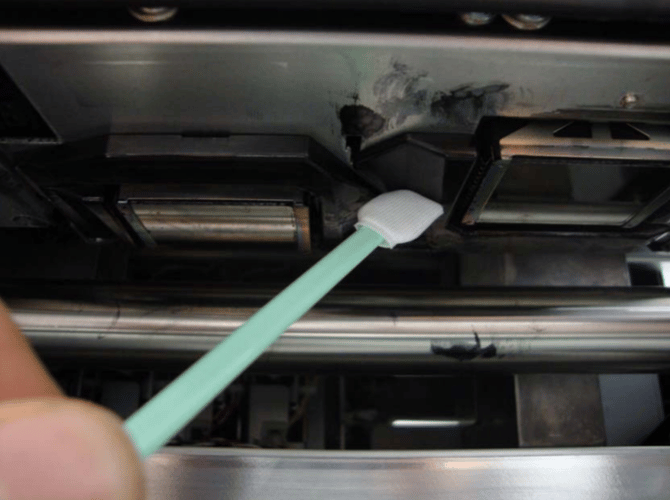

    • To remove any dried ink residue and media fibres from the left and right print head protection ramps
      Periodical maintenance
    • to clean the Spitting box (+ replace the sponge if needed)
    • there are no fibres or dried ink on the sides of the spitting box
    • to clean the media retainers
    • to clean the optical parts such as the encoder strip, etc. with isopropy alcohol
    • to lubricate the mechanical parts (Y-rail, etc)

For detailed information, please refer to the maintenance manual of the corresponding machine.
