MUTOH Japan announced the introduction of a new revision of dampers.
Please find herewith an overview of what part numbers have been revised as a result of this change.
Spare parts pricelists will be revised accordingly.
| NOTE: These new part numbers will become available for delivery upon depletion of stock of the current parts. |

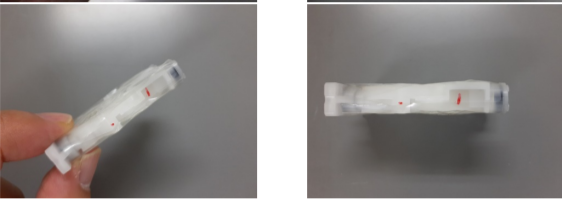

Visual recognition: the new dampers can be recognized by means of a red marking.
Cut-in serial numbers: the new dampers are pre-installed as following serial numbers.
XPJ-461UF : JI3U000347 ~
XPJ-661UF : JM2U000431 ~
Dampers.

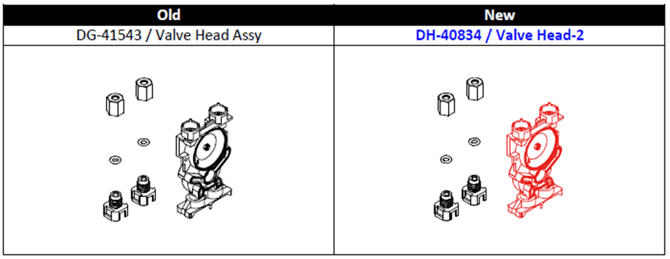

New part numbers for the dampers with the white connectors:
- DG-41543 will be replaced by the DH-40834
 |

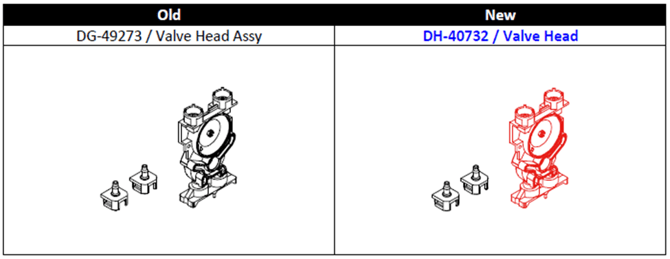

New part numbers for the dampers with the black connectors:
- DG-49273 will be replaced by the DH-40732
 |
Print head.

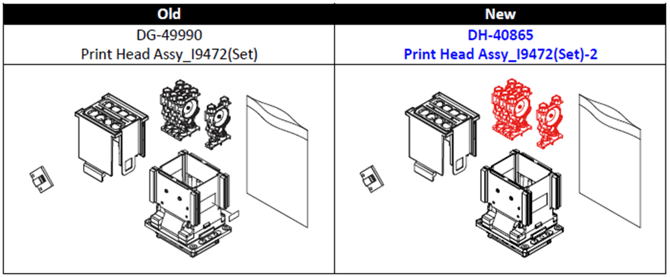

New part number for the Print head:
- DG-49990 (type I9472) UV head with dampers included will be replaced by the DH-40865 (type I9472) with new dampers included.
 |
Maintenance kits.
Historically, dampers have always been included in the periodical maintenance kits for yearly maintenance on UV printers.
This has now been revised; no dampers are included in these kits anymore, as a result it is not needed to pro-actively replace the dampers every year.
New part numbers for the periodical maintenance kits:

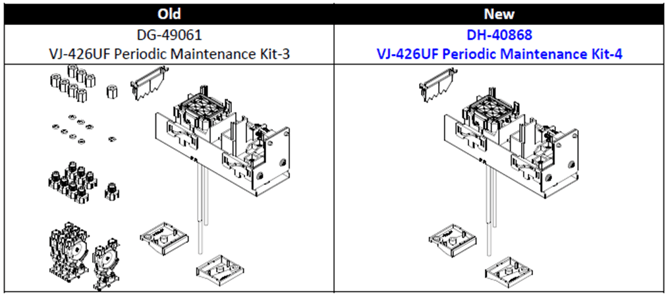

VJ-426UF/VJ-626UF:
- DG-49061 will be replaced by the DH-40868.
 |
VJ-1626UH
- DG-48701 will be replaced by the DH-40867.
 |
VJ-1638UR/VJ-1638UR2:
- DG-48691 will be replaced by the DH-40871.
  |

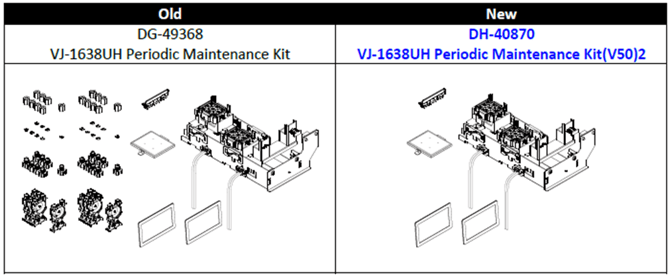

VJ-1638UH/VJ-1638UH2:
- DG-49368 will be replaced by the DH-40870.
 |
