TIB 851: VJ-1638UH2 - possibility of loosening screw

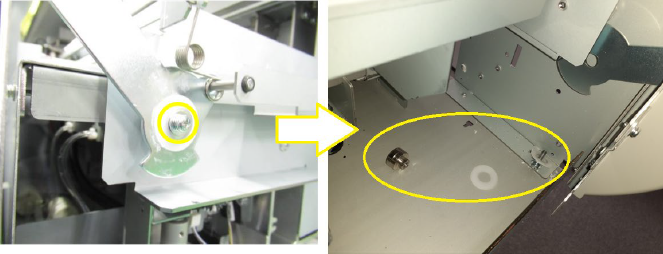

Problem: There is a slight possibility that the screw holding the fulcrum shaft of the pressure lever is coming loose.

The screws holding the fulcrum shaft were not secured with thread lock during production.



UJKtp81_4s5vi-Igo7S_CpB0cB1gq3L6Qw





Affected printers:



NY5GaREQDELT3H8bmxZwGt4sA0oywHHH7g



As of serial number JV6U000062 the screw is secured in the factory.



Countermeasure:

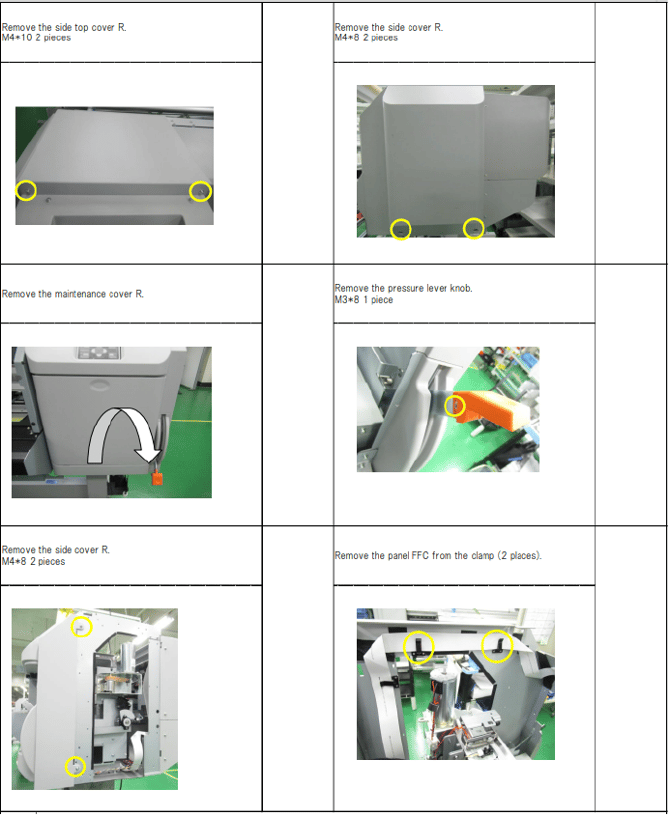

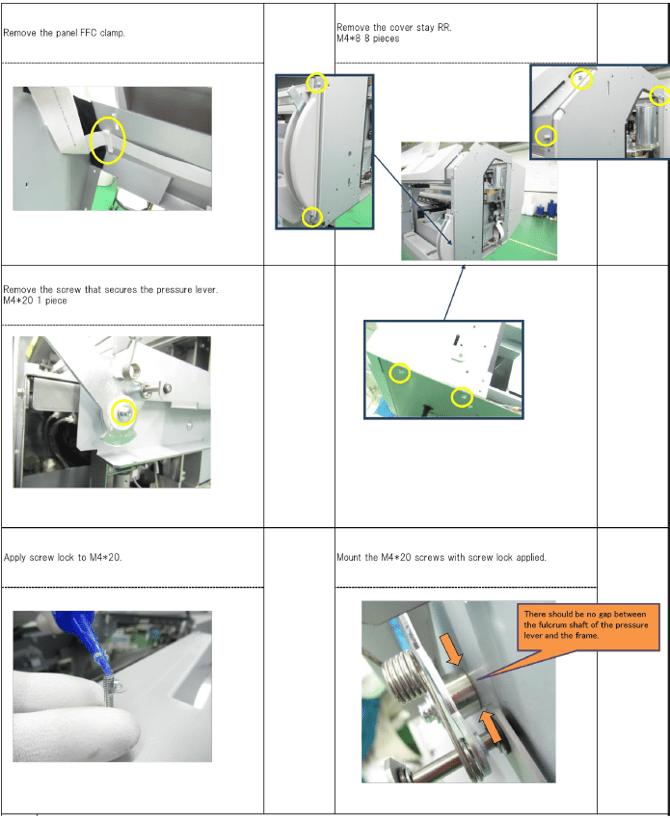

In order to avoid the screw of coming loose we advise to secure the screw by applying some Loctite according to below procedure.



m4ZecqWiFYL8Zxa1iW8yhCUwuWMcqL1J5w

CH-9rguOF-63SyApwhZPbStHF5SO6F5_GA
