TIB 853: Temporary change of the winder Power Supply

Problem:

Due to difficulty in procuring the original power supply board for some winder models the board has been temporarily changed.





Models involved:

  • VJ06-TUP10
  • VJ1213-TUP20
  • VJ1619-TUP30





Changed part:

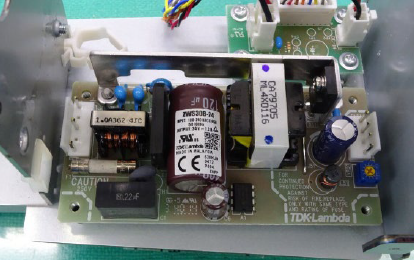

  • Original part: DG-45347



k2puxUYtWXPS_S6JCCkPNtjtn94akQoY1g

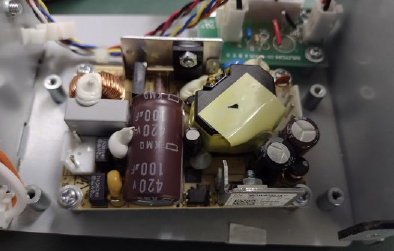

  • Temporary part (smaller than original)



nOct8Z3wo0upETo1wZui_OkupqlV7EFNkg



Extra info:

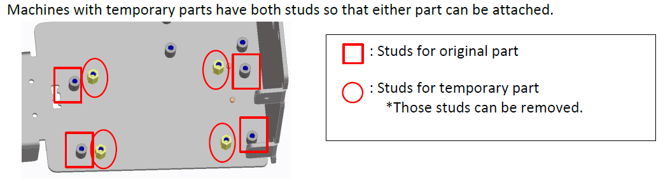

1/ Target machines:

CC97p4BOQ7pXyyIGMr8Vpje0dHLOhNzguw

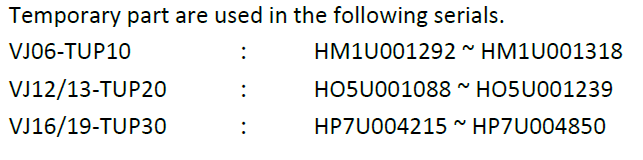

2/ Cut-in serial numbers



32LFwS5V56cb831fz8BQrVX9w4LSjASZbw

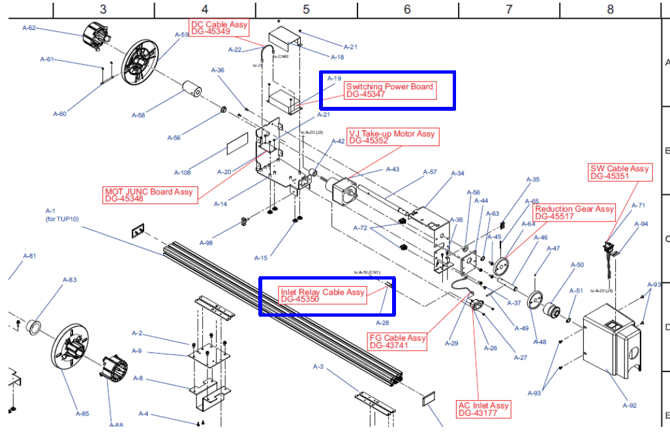

Spare parts:





BSjB__Q_oItm1D9J0uH5kHWxKyjf4E_m_g

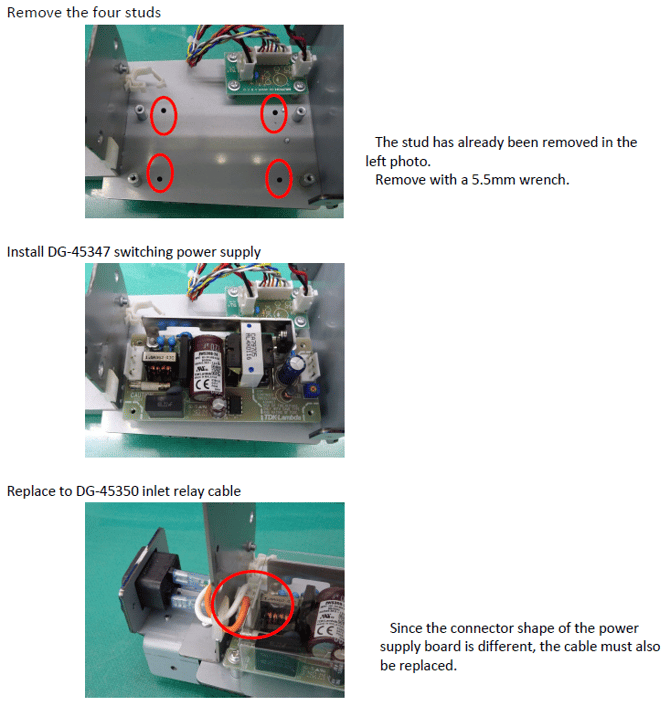

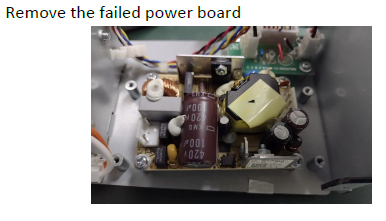

Parts replacement procedure:



Yx0S5wcBANQ69pnkZBEC4NSC2j4QFTlwSQ

q473Tz7QuebaYk9oTqFI28LSywVobvv0fg
