In case there would become some “lateral play” between the printer’s frame base and the printing table we can offer a “Table stabilization assy”.
By mounting these 2 “stoppers” onto the shafts (one stopper on each shaft) the structure becomes more rigid and sideways movement of the printing table will be eliminated.
For machines as from serial number JM2U002191 these countermeasure parts are pre-installed.

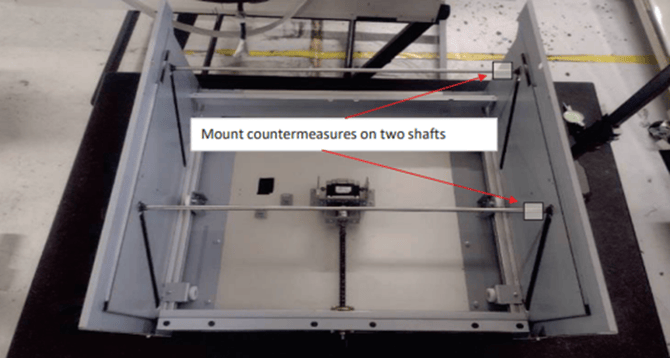

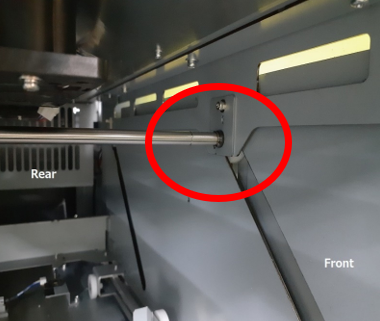

Location of possible play:
Table stabilization assy: DH-41848 (2 pieces per set)

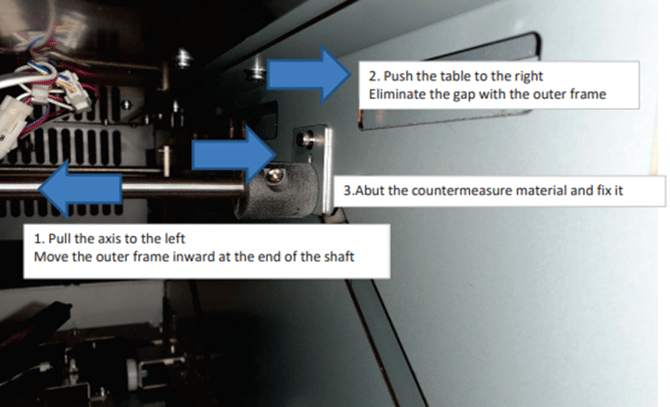

Installation procedure:

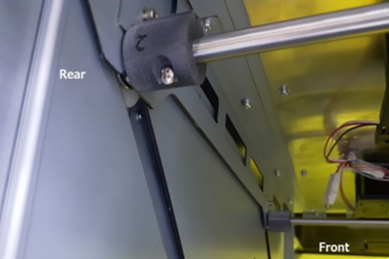

Final result:
