TIB 862: XPJ-1462UF - Change of laser sensor adjustment procedure

Dear Customer,



The laser sensor adjustment procedure has been revised to improve the media thickness detection accuracy.

If the meia thickness is not detected correctly, please re-adjust the laser sensor.



This revised procedure is available as of Firmware version 1.05 (and higher).

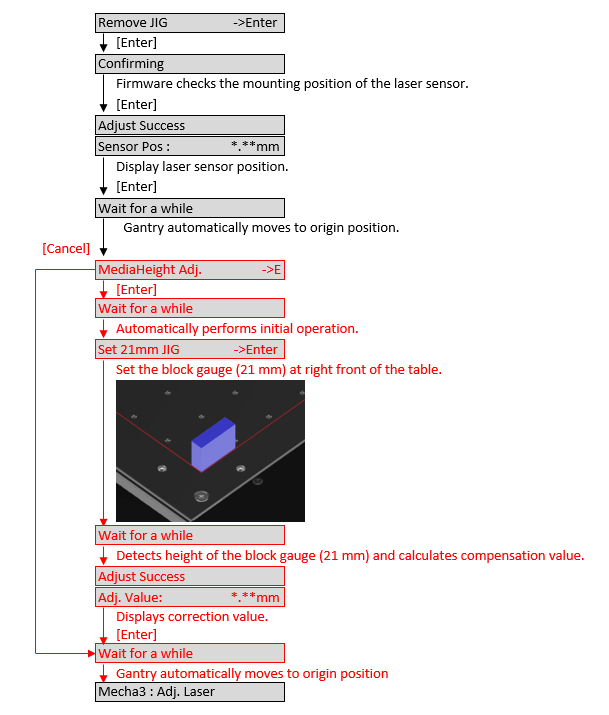

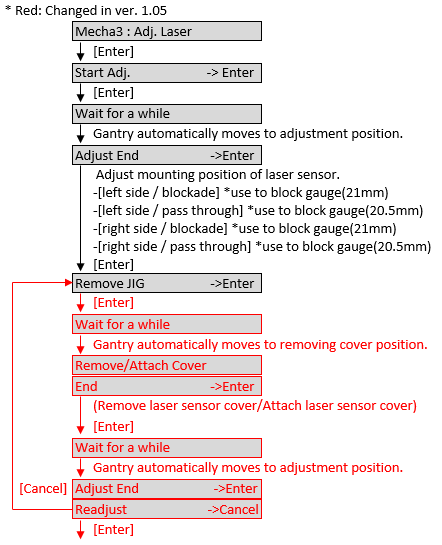

Procedure:



7Ohp52TIGKfO7PbdhEHg_ybkhqdg-SZrkw



DvrvflxZDwJ9_QRzXVV7GPA82kTHsWeyYg
