TIB 865: XPJ-1341xR-P _ Possible malpositioning of the cover gasket

Dear Customer,



we have been informed by the factory that there is a slight possibility that on some units the EMC gasket between the main body and the rear paper guide might have fallen off during assembly.

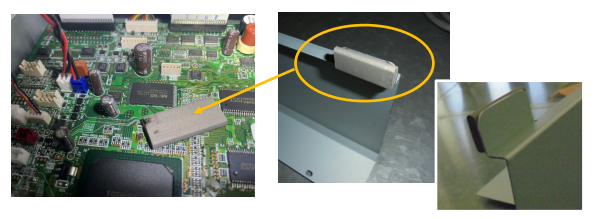

9yAMTLdGZ80ujJgvEzmz-aje_4rR74FtGA

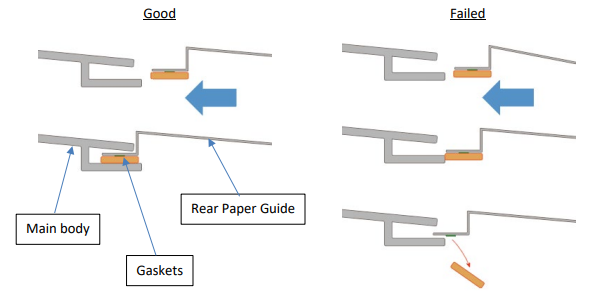

During assembly the gaskets were attached to the back of the left and right sides of the paper guide by means of double-sided backing tape. It appears that on some units this gasket fell off during the attachment of the paper guide to the main body.



bRgLRTBwa5hTc6O-Hw9HxJp72SqAw-9Psw



As a countermeasure, the assembly procedure has been changed and the gaskets are now being placed onto the main body.

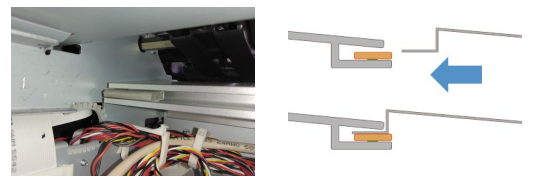

yBL1GVtEMLaQOlB7CkY_AJr3vN6MZVuTmw



Even if the gasket is being pushed inside the groove by the paper guide during assembly there is no problem since the EMC characteristics will remain valid in this situation.

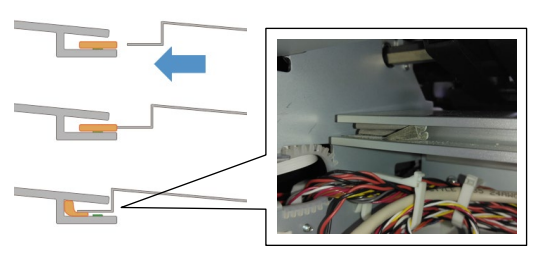

JMWDUKd37ep2oEN3S50vVpocTjE4MySVgQ

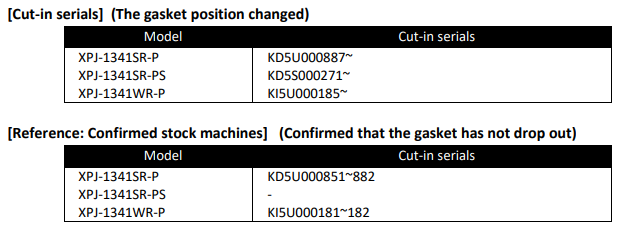

A26TwKkvaBDLnPCb6dDdXrPEZX2ulOqmKw



On units with serail numbers prior to these you might want to check the position of the gasket when visiting the units for servicing or repairing.

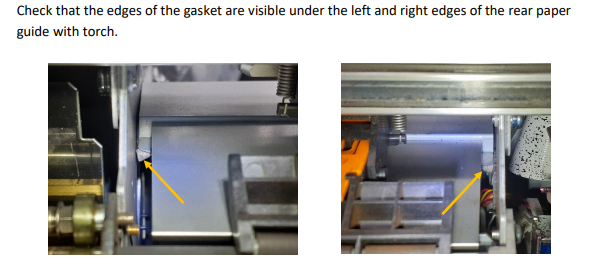

How to check the gasket:

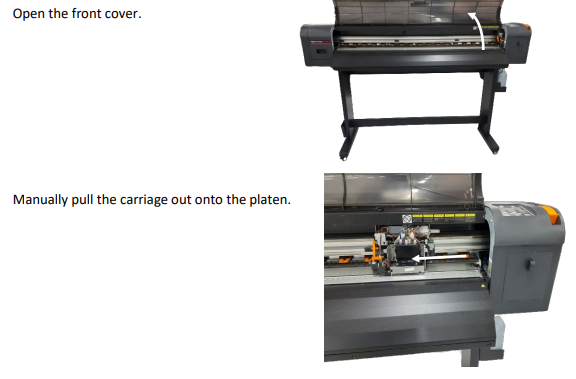

tx-nrAomIXa5FV_Ltt__PyU5QTJ37anjTw



NlNOHenEHK13onR9fWJhO03CkzquotnyvA



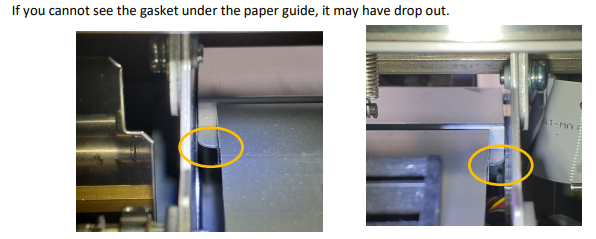

exbc-_yz1DdrB89ef8omK6IKsfSdi4FtuQ






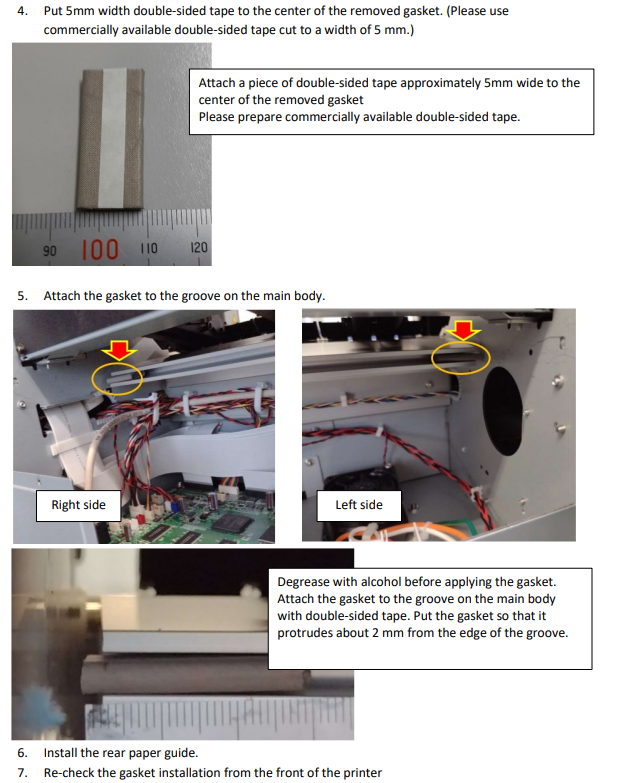

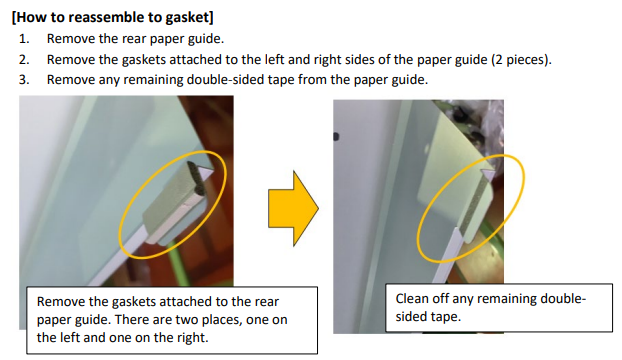

kdRRJq1s-LsZQ9YFeV8rjoLvhUDFBK6izgT3VRBN-UsOeGZvdPpG117lBxorHz8kmj5g
