How to tackle static electricity when printing on plastic substrates with a Mutoh DTO printer?

Modified on Wed, 10 Mar, 2021 at 9:34 AM

Ideas to tackle static electricity issues when printing onto plastic substrates with a Mutoh DTO printer (426UF, 626UF, 461UF, 661UF)


Which print effects may be related to static electricity when printing onto plastic substrates?

  • Ink drops end up in wrong places causing blurred printing

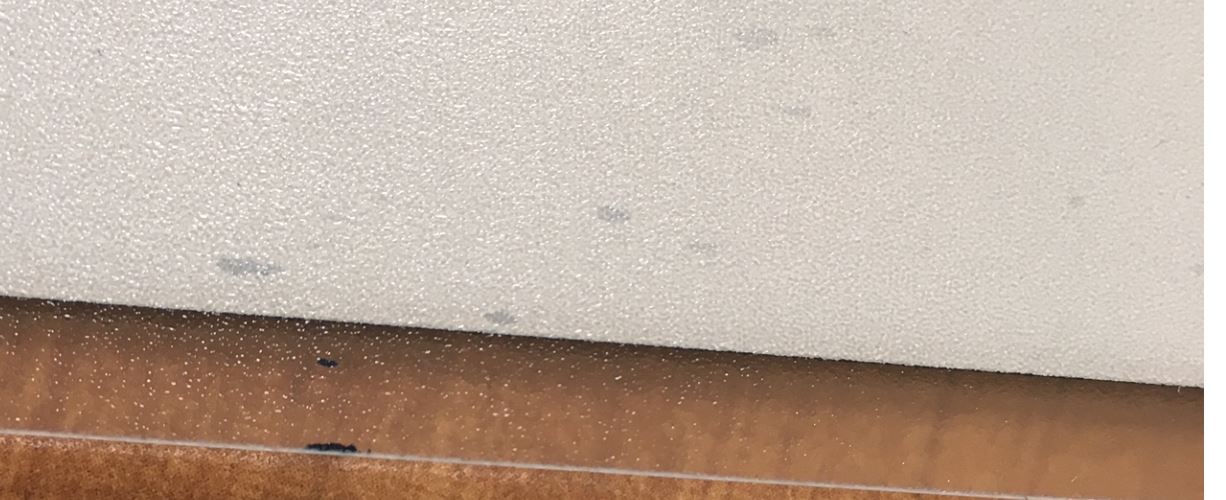

  • Small ink drops or ink satellites are deflected back to the nozzle plate/print head carriage, where they can accumulate and potentially cause nozzle deflection, nozzle clogging and ultimately cause ink dripping.



Tips:

  1. Make sure always to verify the relative humidity in the working environment. To ensure optimum printing conditions, Mutoh recommends to print with 40% - 60% relative humidity at all times.
    In North Europe, particularly between November and April achieving 40% may prove to be challenging without properly humidifying the workplace.
  2. Remove static build-up using a soft cloth moistened with alcohol. Use alcohol with a high purity to avoid stains.
  3. Avoid flooring which promotes the build-up of static electricity like for example carpets.
  4. Ensure the printer is connected to an outlet with proper grounding.
