Necessary tools

In order to be able to install firmware, the following tools are required:

• Personal computer with MS Windows
• Network cable to connect the Valuejet wit the pc
• The latest MSA-tool (Mutoh Service Assistance) or VSM-tool (Valuejet Status Monitor)

Detailed instructions how to install the firmware, are described in the maintenance manual.

The latest current firmware can be downloaded below this article.

Current version 2.02

Diagnostics

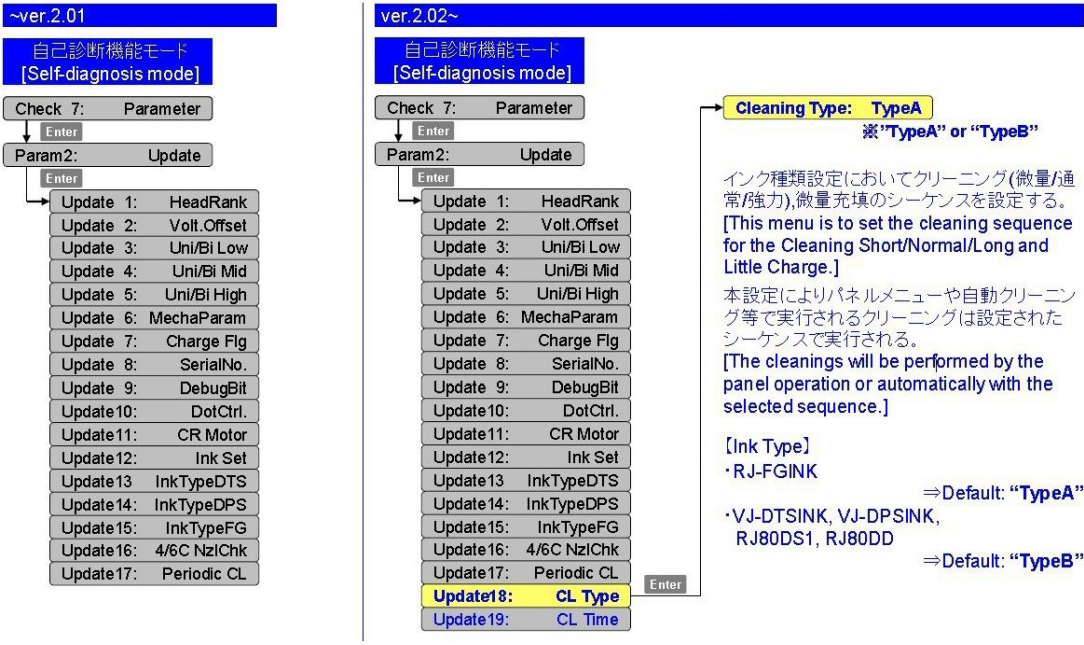

• Added the menu “Update 18: CL Type”. This menu enables you to select the cleaning type and cleaning sequence you need, depending on the ink type you are using.

• Added the menu “Update 19: CL Time”. This menu enables you to select the suction time during cleaning (short, normal or long), depending on the ink type you are using.


Version history

2.01

Changed items

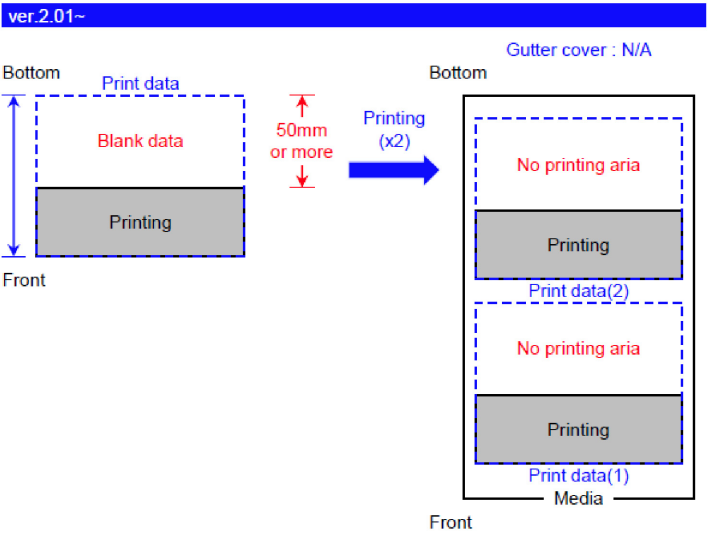

• Modification to prevent the printer to ignore white space at the bottom.  In the following situation, the printer ignores white space at the bottom:
  • When white space at the bottom is 50mm or longer.
  • When continuous printing is performed.
  • When the gutter cover was removed.


  •


• Modification to prevent illegal printing

2.00

• Compatibility with new type flash rom.


  Note This firmware is also compatible with the old type flash rom.

• Network time-out interval extended from 60 secs to 300 secs
• Additional ink types (RJ80DS1, RJ80DD) added in user ink type menu

1.09

Changed items v1.04 > v1.06

• Changed user mode adjustment pattern
• Changed diagnostic mode Uni-D/Bi-D adjustment menu and pattern
• Added the operation switch-over function per ink type
• Adjustment pattern panel English display changed
• Nozzle check switching feature.  Nozzle  check  pattern  in  user  mode,  there  is  the  request  not  to  print  “comb”  pattern  if  it's 4color/6color/4x double.
• Improved countermeasure of the stable firing for Sublimation transfer ink
• Added the wave form switching feature for Sublimation transfer ink

Bug fixes v1.04 > v1.06

• Manual feed during feeding at the user menu Bi-D pattern => fixed
• Diagnostic: Parameter ALL servo parameter default value was not printed with * mark since the printer chose the VJ2628TD (level2) default. => fixed.
• At printing Set-up list in case of 4 color double setting, and drop size “larger”, and “Largest”, [1] media type and [5] drop size are not displayed correctly. => fixed
• When PF is set +/- 15M and check the position, the feed direction becomes reverse. (if +/- 10M is set, this doesn't happen) => fixed.
• At End action of CR maintenance, during CR is moving to home position, pressing UP or DOWN key to go back to the usual display message, after CR moves, it freezes. => fixed
• During feeding without printing, even if pressing “CANCEL” key, it won't stop until finishing feeding. => fixed
• Print start feed problem => fixed
• When Ignore is set, the communication with H-CONT error occurs. => fixed.
• In the normal mode adjustment pattern, the firing line becomes thinner. => fixed
