TIB839 - New waste fluid tubes

Modified on Mon, 8 Nov, 2021 at 11:54 AM

There are currently 2 kinds of waste fluid tubes which are connected from the waste system up to the waste bottle

Transparent (or milky white) tubing for Solvent & Water based units

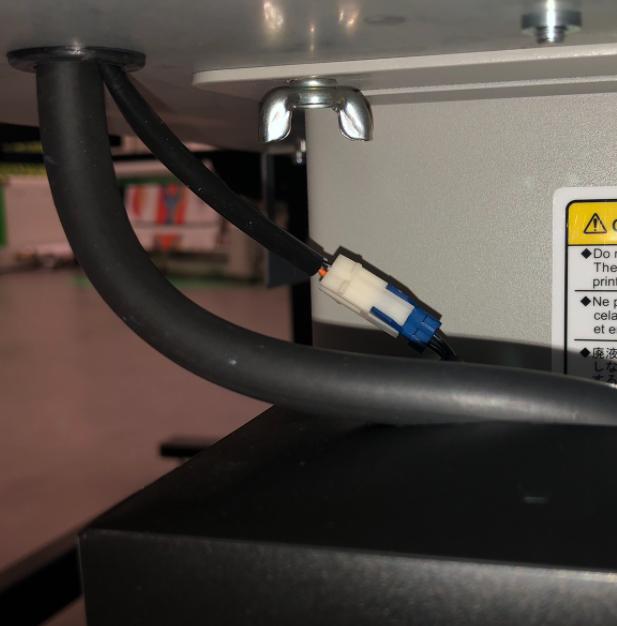

Black tubing for UV units

We have introduced new, universal part numbers for both these tubings.

Old part number: DG-40903 (will become obsolete)

New part number:
DF-46661 - Waste fluid tube Large (330mm)

New part number:
DH-40843 - Black Waste Tube (1m)

Supported on the following models

VJ-1324

VJ-1324X

VJ-1604WX

VJ-1604X

VJ-1617H

VJ-1624

VJ-1624W

VJ-1624WX

VJ-1624X

VJ-1627MH

VJ-1628TD

VJ-1638WX

VJ-1638X

VJ-1924W

VJ-1924WX

VJ-1938WX

VJ-1948WX

VJ-2628TD

VJ-2638

VJ-2638X

XPJ-1641SR

XPJ-1682SR

XPJ-1642WR

XPJ-1682WR

Supported on the following models

VJ-426UF

VJ-626UF

VJ-1626UH

VJ-1638UH

VJ-1638UH2

VJ-1638UR

VJ-1638UR2

XPJ-461UF

XPJ-661UF

The length of the transparent waste tube, covers all supported printer models. The length of the black spare waste tube has a fixed length 1m long. In order to have a smooth curve in the waste-tube without kinks, please cut the tube to the appropriate length depending of printer model. The length of the transparent tube should also be cut to the appropriate length (if necessary) for the same reason.

The old (obsolete) DG-40903 transparent/milky white tube will be continued to be offered, until the remaining stock is depleted.
