ValueCut v3.03GA

Modified on Fri, 8 May, 2020 at 11:46 AM

Necessary tools

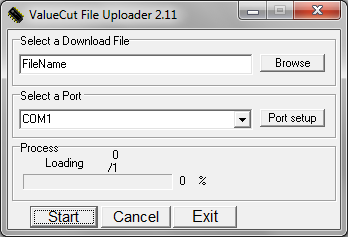

In order to be able to transfer your new ValueCut firmware, the ValueCut File Uploader application is required.

After connecting your cutter, please select the appropriate port setting, and browse for your new firmware.

The latest current firmware can be downloaded below this article. Make sure to download the corresponding firmware for your model size!

VC-600: Mutoh_J4-61A-v3.03-03

VC-1300: Mutoh_J4-132A-v3.03-03

VC-1800: Mutoh_J4-183A-v3.03-03

Release date: 27 april 2017

Current version - 3.03GA

NEW

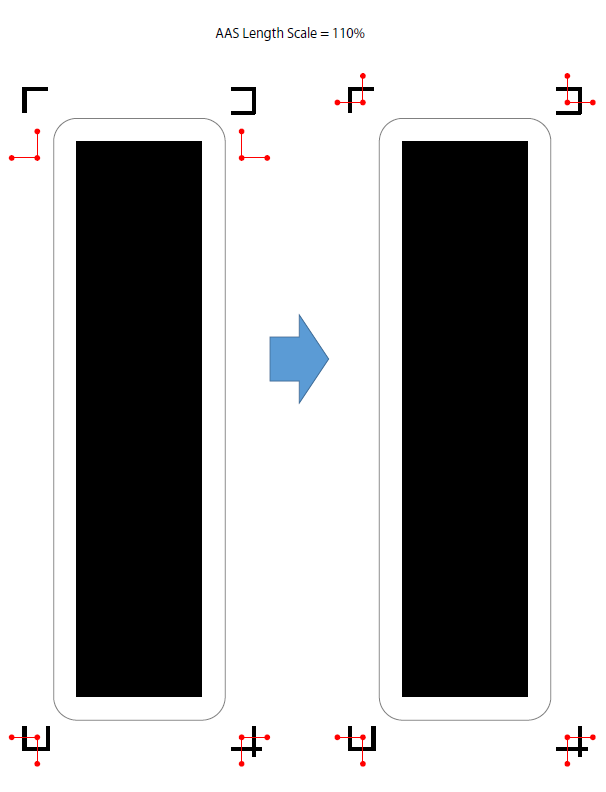

AAS Length/Width Scale has been added to the MISC menu.

This menu selection allows you to adjust the reading distance between the registration marks. This menu option is a useful function in case the registration mark detection can not not reach the printed registration marks.
Such a situation often occurs when small registration marks were utilized.

The AAS Scale does not scale the plot data. AAS Scale corrects the feed amount of media and CR at the time of Reg mark detection.
Plot data is adjusted relative to the detected Reg mark.

Version history

Release date: 30 april 2015

3.02A-02

To enlarge our detection possibilities on a wider range of media types, a specification modification was made concerning the AAS registration mark detection.

Old method of registration detection - previous firmware	New method of registration detection - new firmware

With regard to this modification, several parts changed as well. Therefore, there will be no part compatibility between old type and new type parts, so please make sure that old type and new type parts will not be mixed.

If you make a mistake on the parts combination, our ValueCut plotter will be unable to detect the registration marks appropriately.

Please check below serial number information's, and each part combinations.

Main Board / CR Board / Firmware => change all 3 parts as a set!

VC-600	EVC2U0481～
VC-1300	EVC5U0995～
VC-1800	EVC7U0314～

< Maintenance Parts Combination >

Old type (before above serial number)

Main board	ME-G290077700G	2 in 1 Cutter main board
CR board	ME-G29004369G	AASII carriage board assembly
Firmware	Ver2.15

New type (after above serial number)

Main board	ME-G290090000G	2 in 1 Cutter main board
CR board	ME-G290089990G	AASII carriage board assembly

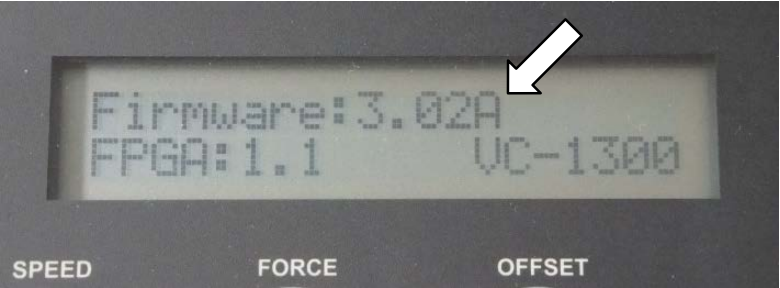

Firmware	Ver3.02A

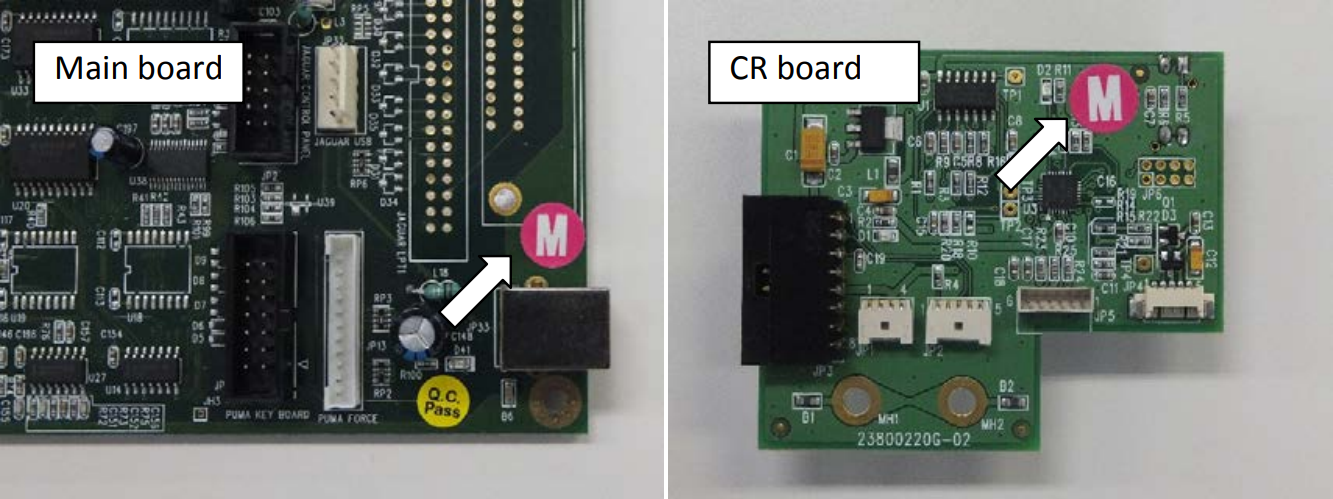

Important note: an "M" mark sticker will be present on the new type of boards

Note

An "A" indication informs you that the firmware is compatible for new parts only. If no "A" indication is labeled, the boards are dedicated for older model types.

Release date: 22 feb 2013

2.15

First firmware version

Attachments (3)

03-03

Mutoh_J4-61A-v3.03-03
734 KB

03-03

Mutoh_J4-132A-v3.03-03
734 KB

03-03

Mutoh_J4-183A-v3.03-03
735 KB
