Daily Maintenance sheet: XPJ waterbased printer Series with DS3 / DS4

Modified on Wed, 25 Jun, 2025 at 10:45 AM

TABLE OF CONTENTS

Advised Daily Maintenance Scheme
Daily Maintenance Overview
WIPER CLEANING
CLEANING AROUND THE PRINT HEADS
CLEANING AROUND THE CAPPING UNIT & FLUSHING BOX SPONGE
Maintenance & consumable replacement without specific fixed scheme.

Advised Daily Maintenance Scheme

To keep your printer in perfect shape, it is important to follow the maintenance guidelines. Performing preventative maintenance on the machine improves the longevity of the ink delivery system parts and assists in the optimum performance of the machine together with the ink.

Frequency: Daily at the end of a production day

Cleaning the wiper.
Cleaning the capping rubbers in the maintenance station.
Cleaning edges of the printhead faceplate.
Flush the caps in the maintenance station.
Rinse away ink remainders from the spitting box sponges.

Important:

To perform maintenance, it is important to use the cleaning liquid available specifically for DS3/DS4 inks (DS3-CL1000E)
Do not use tap water to perform these activities. The presence of lime in tap water will cause issues.
Illustrations used in this document are based on the XPJ-1642WR, XPJ-1682WR and XPJ-1682SR-DSP models. On XPJ-1341WR-P the actions are similar, however the menu structure and printer mechanics might differ.

Daily Maintenance Overview

Required items:

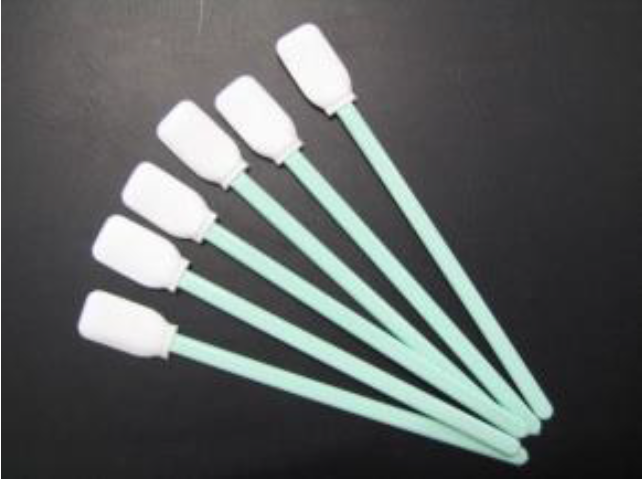

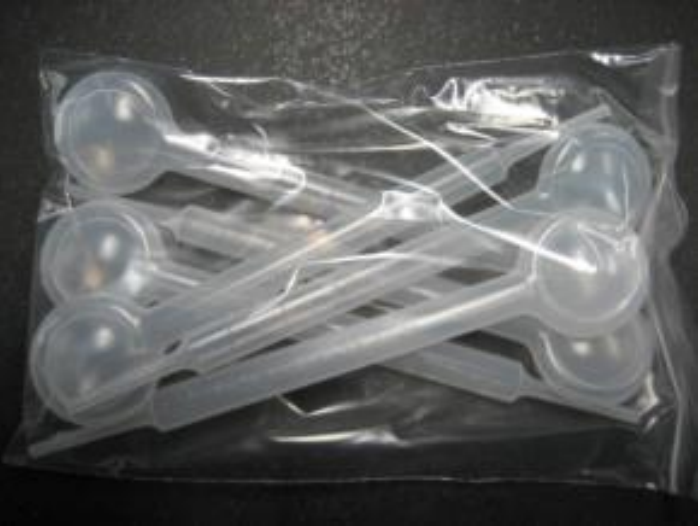

Cleaning sticks - RH2-CLEAN-STICK		Droppers – 1U021001 – Dropper 6 Pack Set

DS3/DS4 Cleaning liquid: DS3-CL1000E		Nitrile Gloves: DH-40162 or PJ-GLOV (or alike)

Important: Do not touch the cleaning sticks with your fingers. Skin grease may cause quality issues. Do not reuse dirty cleaning sticks. Dust, dirt and dried ink remainders will cause quality issues.
Step	Display		Touch Panel Action and/or Activity

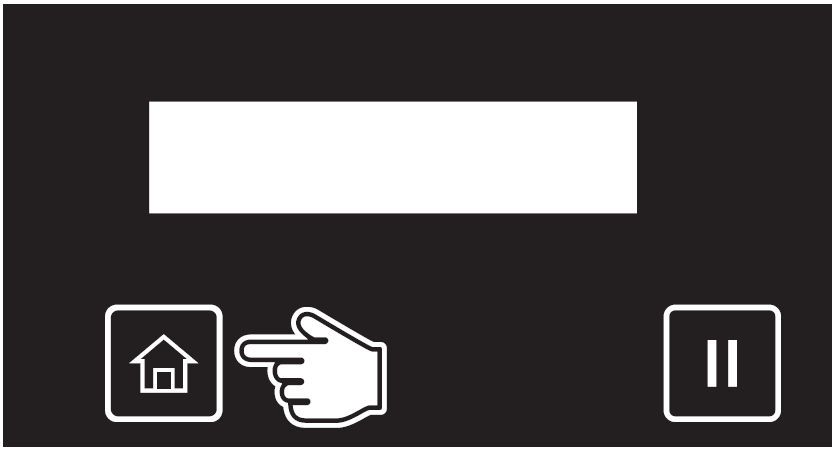

			Tap “Home”

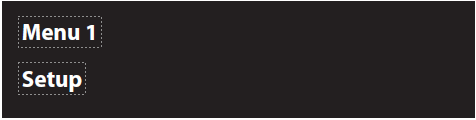

	XPJ-1642WR & XPJ-1682WR XPJ-1682SR-DSP		XPJ-1642WR & XPJ-1682WR Tap <Arrow Right> and proceed to step 3. XPJ-1682SR-DSP Tap <Arrow Down> until the Menu CR Maintenance appears. Depending on the printer model and installed firmware version, the Setup Menu number may be different. Then, tap <Arrow Right> Proceed to step 4.

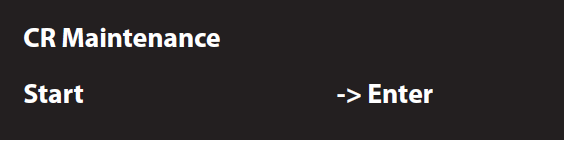

	XPJ-1642WR & XPJ-1682WR		Tap <Arrow Down> until the Menu CR Maintenance appears. Depending on the printer model and installed firmware version, the Setup Menu number may be different. Then, tap <Arrow Right>

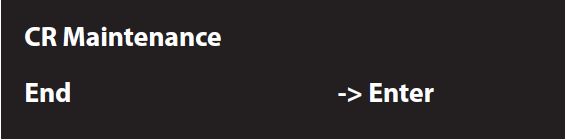

			Tap <Enter> The head shuttle will move to the left side of the printer. The wiper will move upward allowing you to clean it.

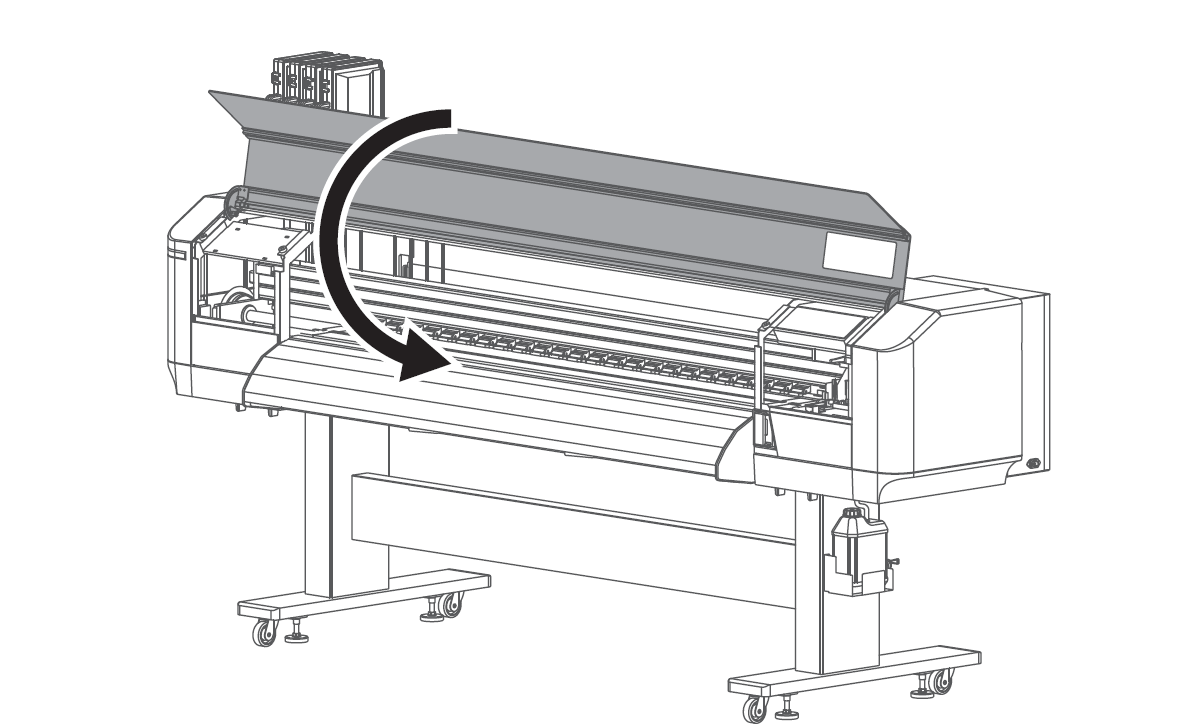

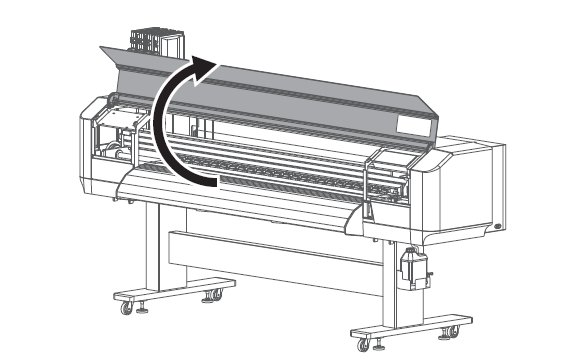

			Open the front cover.

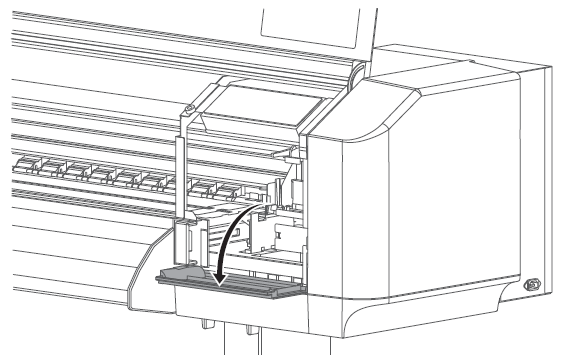

			Open the right maintenance cover.

WIPER CLEANING
	XPJ-1642WR	XPJ-1682WR	XPJ-1682SR-DSP

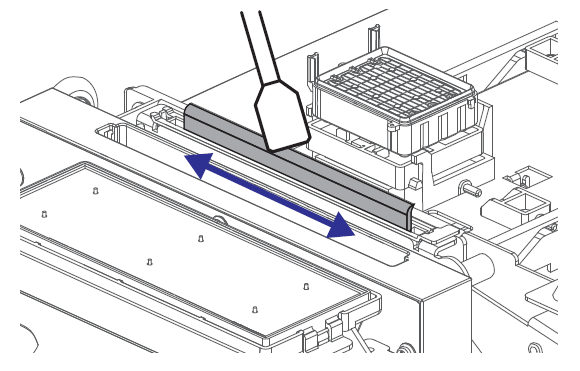

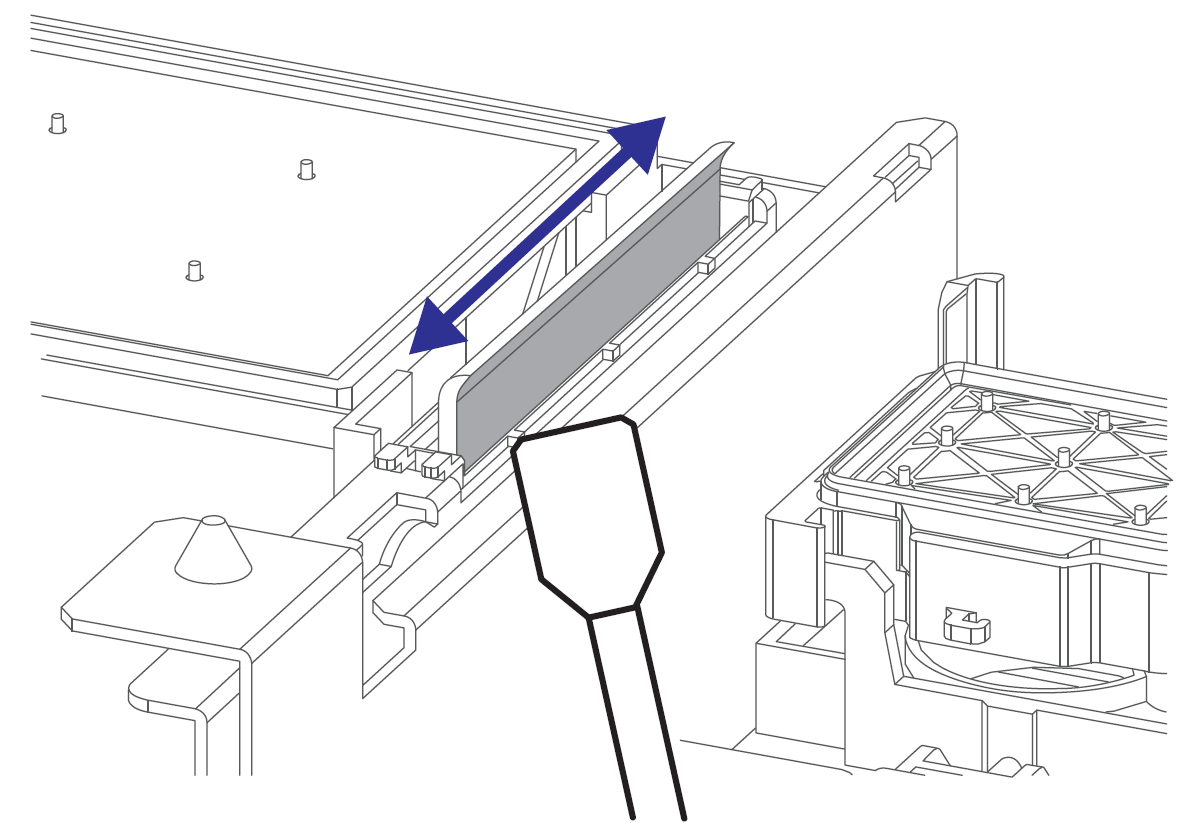

	Wipe the left side of the wiper back and forth using a cleaning stick moistened with some cleaning fluid (DS3-CL1000E).

XPJ-1642WR

XPJ-1682WR

XPJ-1682SR-DSP

Wipe the right side of the wiper back and forth using a cleaning stick moistened with some cleaning fluid (DS3-CL1000E).

CLEANING AROUND THE PRINT HEADS

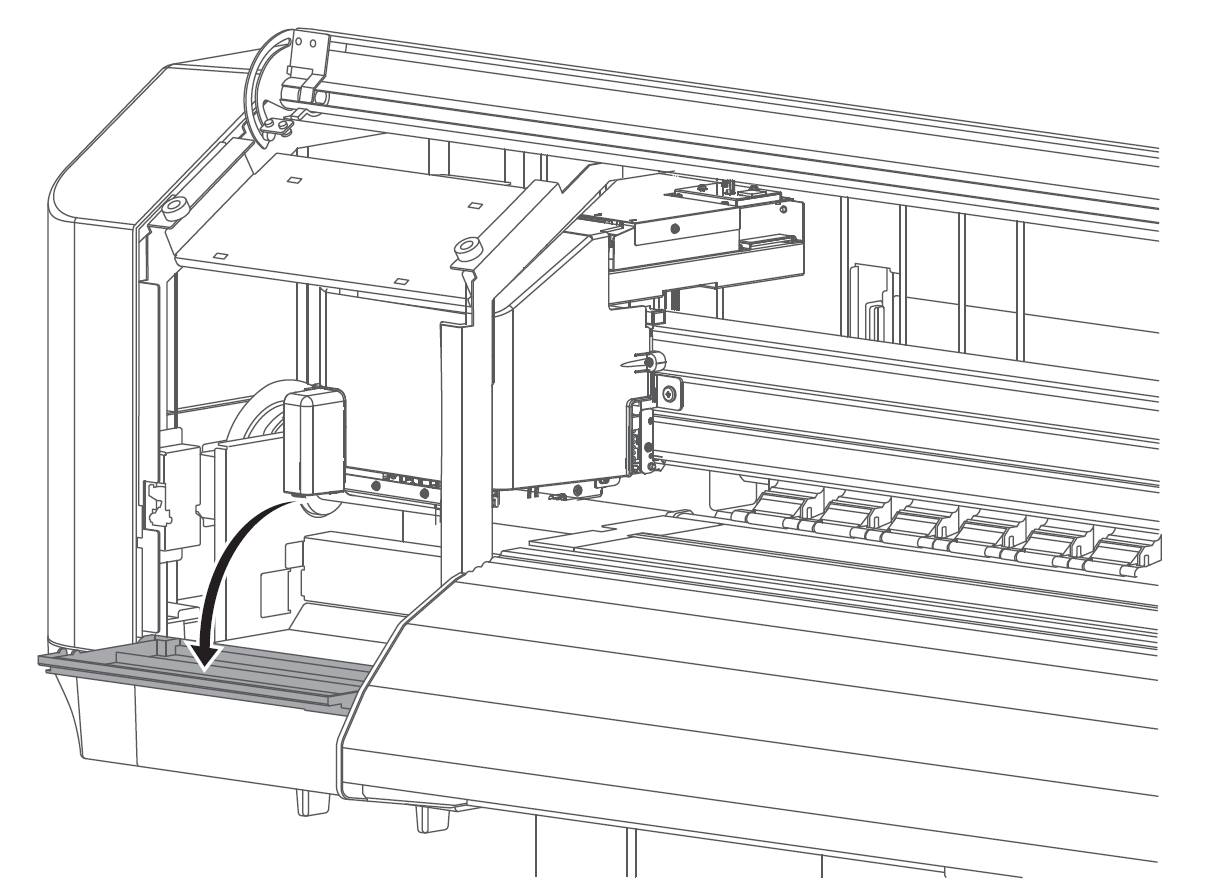

		Open the left maintenance cover.

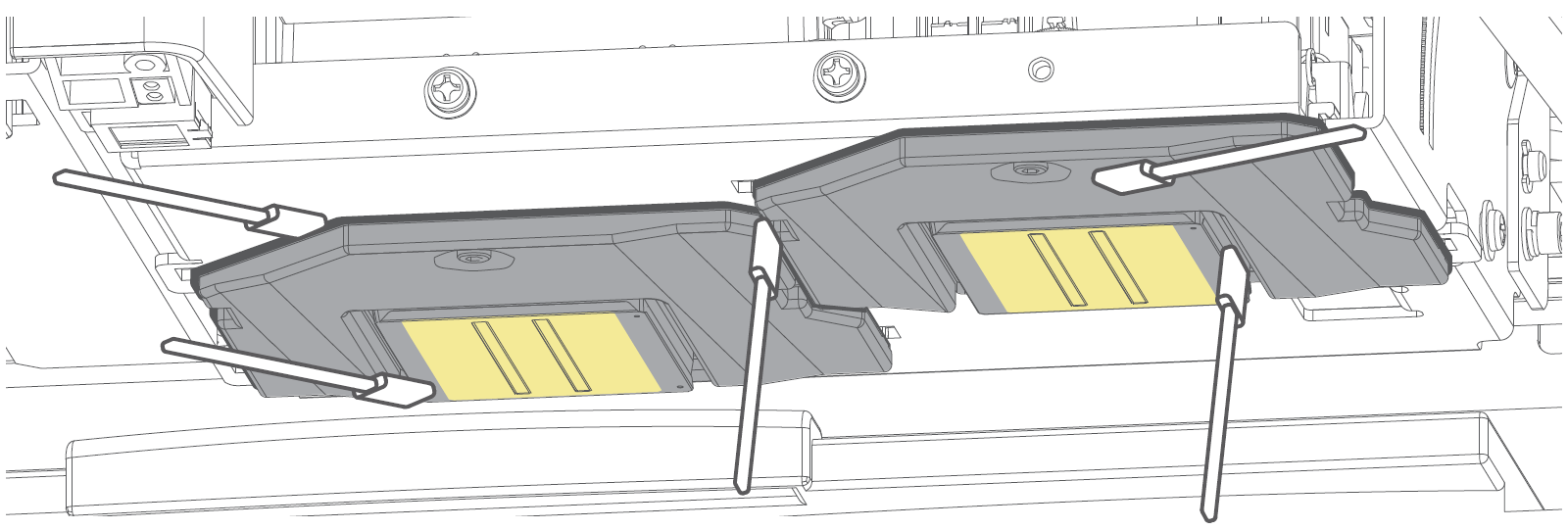

	XPJ-1642WR		Using a cleaning stick moistened with cleaning liquid (DS3-CL1000E), remove accumulated ink and/or dust on the bottom of the print head shuttle. See illustration below Clean the surface around the print head, the space between the print head and the print guide and the left & right sides of the print head. Clean the print head guide (black plastic), the space between the print guides and the bottom of the shuttle and the space between the print guides.
	XPJ-1642WR Model

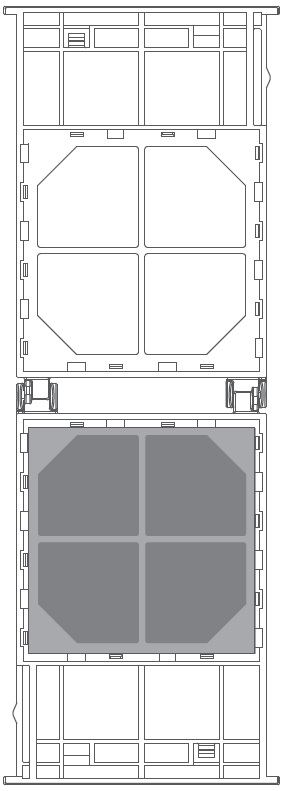

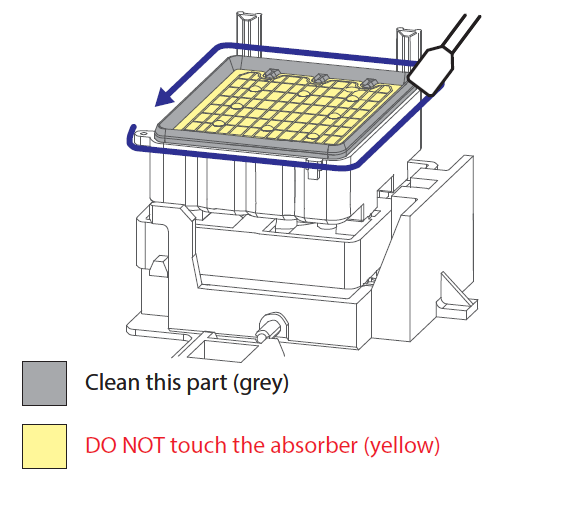

	Clean the area indicated in grey as described above.		Do not touch the area indicated in yellow (nozzle plate surface).

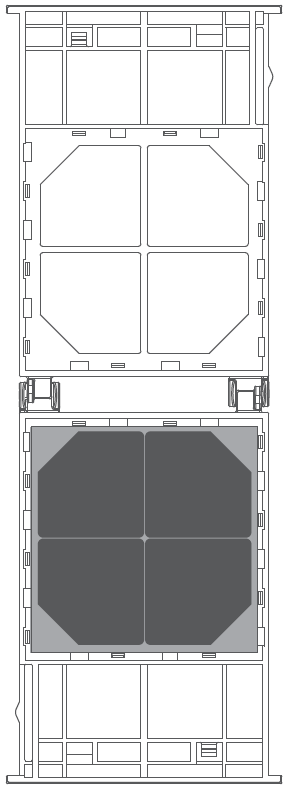

	XPJ-1682WR		Using a cleaning stick moistened with cleaning liquid (DS3-CL1000E), remove accumulated ink and/or dust on the bottom of the print head shuttle. See illustration below. Clean the surface around the print head (silver metal part) as well as the area between the print head and the print guide. Clean the print head guide (black plastic part).

	Clean the area indicated in grey as described above.		Do not touch the area indicated in yellow (nozzle plate surface).

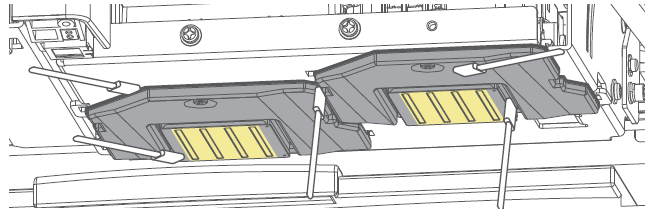

	XPJ-1682SR-DSP		Using a cleaning stick moistened with cleaning liquid (DS3-CL1000E), remove accumulated ink and/or dust on the bottom of the print head shuttle. See illustration below Clean the surface around the print head, the space between the print head and the print guide and the left & right sides of the print head. Clean the print head guide (black plastic), the space between the print guides and the bottom of the shuttle and the space between the print guides.

	Clean the area indicated in grey as described above.			Do not touch the area indicated in yellow (nozzle plate surface).

CLEANING AROUND THE CAPPING UNIT & FLUSHING BOX SPONGE

Use a cleaning stick moistened with some cleaning fluid (DS3-CL1000E) to clean around the capping rubber of each capping unit to remove ink remainders and dust.

Tap the “Down Arrow” to activate the capping station pumps to evacuate ink/cleaning liquid.

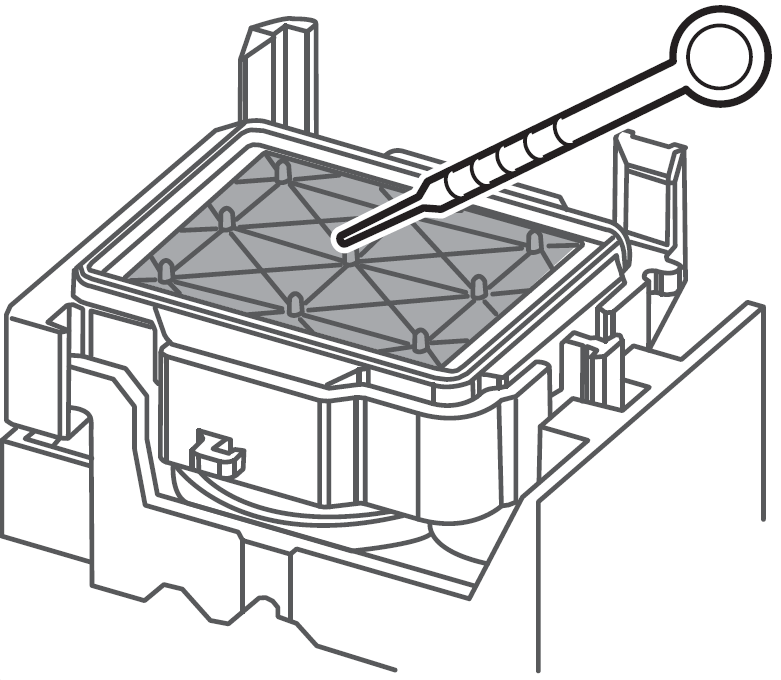

Using a dropper, moisten the capping units with some cleaning fluid (DS3-CL1000E).

Pumping End

As soon as the liquid has been evacuated by the pump, stop the pumps by tapping the “Down Arrow” again.

“Pumping End” is displayed briefly.

To extend the longevity of the flushing box sponge, it is recommended to moisten it with some maintenance cleaner.

Use a cleaning stick to clean the complete area of the spitting box sponge.

After some time, the sponge will be completely saturated and the ink is no longer absorbed. At that time, the sponge needs to be replaced.

Close the left maintenance cover.

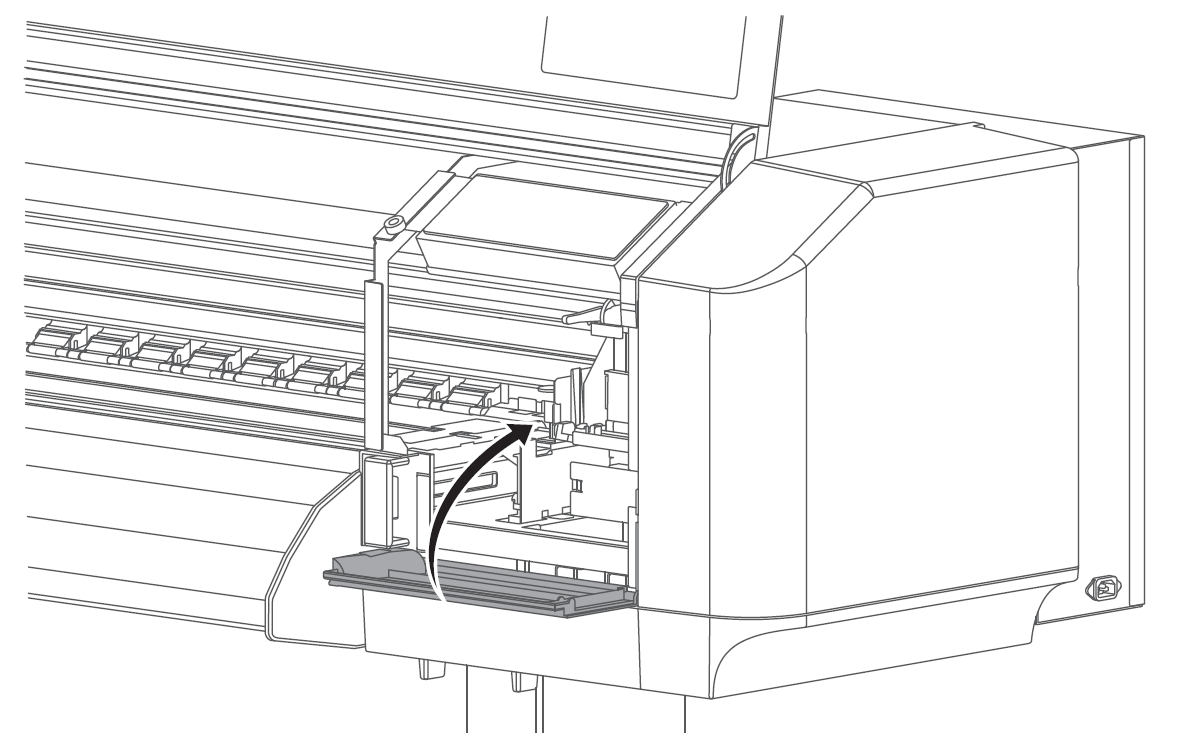

Close the right maintenance cover.

Close the front cover.

Tap <Enter>.

Tap “Home” to end the maintenance process.

Maintenance & consumable replacement without specific fixed scheme.

Details on how to perform these maintenance & consumable replacements can be found in the XPJ-1642WR / XPJ-1682WR / XPJ-1682SR-P (XPJ-1682SR-DSP) Printer Operation Manual.

Maintenance	When to perform & Required parts
Clean the lens of the colour sensor.	The printer repeatedly fails to perform auto calibration.
Replace the flushing pad / spitting box sponge.	The flushing pad/spitting sponge is fully saturated and the ink is no longer absorbed. XPJ-1642WR: Flushing Pad - IJ-FLABS-01 (3 pieces/box) XPJ-1682WR: Spitting Box Absorbent - VJ16STG-FB-W3 (3 pieces/box) XPJ-1682SR-DSP: Flushing Pad - IJ-FLABS-01 (3 pieces/box)
Replace the cutter blade.	The printer is no longer able to cut paper smoothly or completely. XPJ-1642WR: Cutter Blade / Sheet-Off Knife - VJ-CB XPJ-1682WR: Cutter Blade / Sheet-Off Knife - VJ-CB XPJ-1682SR-DSP: Cutter Blade / Sheet-Off Knife - VJ-CB XPJ-1341WR-P: Sheet of Knife VJ-CB
Replace the exhaust fan filters.	The exhaust filters collect ink mist. Please inspect them regularly and replace them when needed. This feature is applicable only for XPJ-1642WR: Fan Filter – IJ-EFFLT-01 – 18 pieces per box.


Fresh Filter		Still OK	Replacement Required
Replace the wiper blade	Situations requiring wiper replacement: The wiper is deformed. The wiper can no longer be cleaned properly because too much dried ink has accumulated on it. As such, head cleaning does not work efficiently. ±12 months have elapsed since the previous wiper replacement. Wiper part numbers: XPJ-1642WR: Replaceable wiper for head heights Low1, Low2 and medium – IJ-RWPS-01 (2 pieces/box) Replaceable wiper for high head height only – IJ-RWPSH-01 (2 pieces/box) XPJ-1682WR: Replaceable wiper in holder VJ1638UH-WIP (2 pieces/box) XPJ-1682SR-DSP: Replaceable wiper IJ-RWPS-01 (2 pieces/box) XPJ-1341WR-P: Replaceable wiper IJ-WIP-02 (2 pieces/box)
