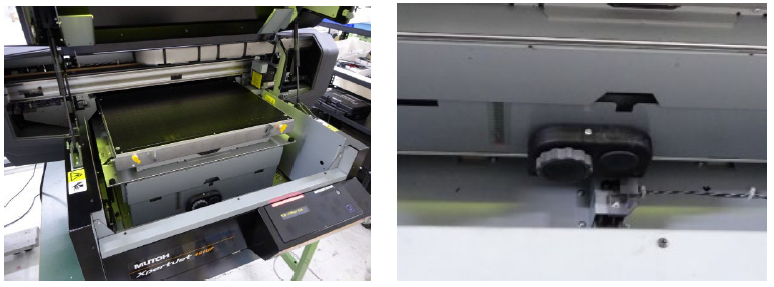

We have received sporadic reports about the table of the XPJ-461UF being unable to be moved up and down anymore with the knob.

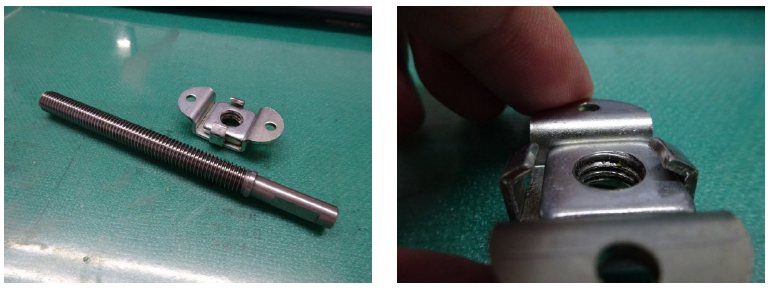

This problem is caused by worn thread on the screw shaft and/or the nut.

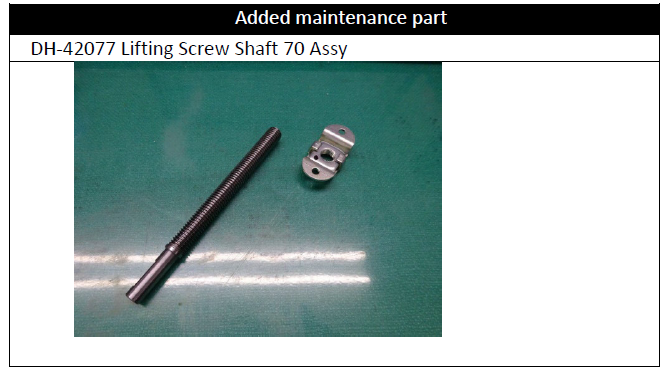

In order to be able to replace these parts a spare part number has been created : DH-42077.
How to replace the parts:

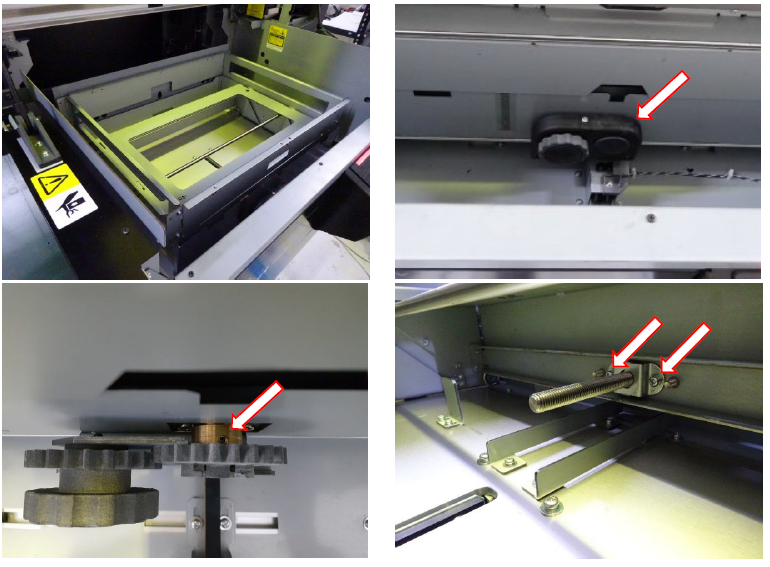

Once the entire table, the PG handle cover, the gear locking screw and the nut fixing plate have been removed, the defective parts can be removed.

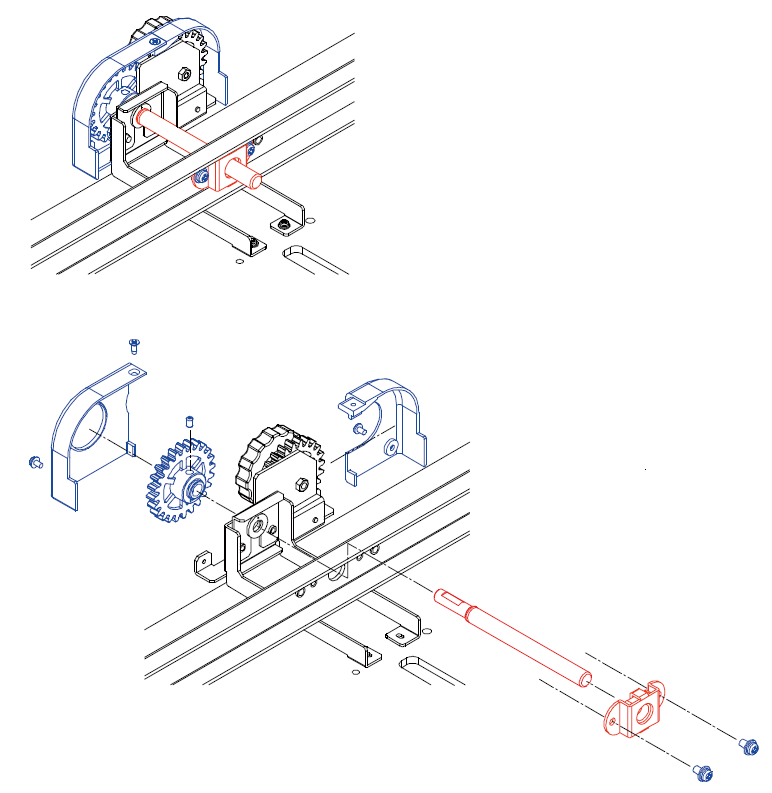

Please also refer to the exploded view below. If you remove the blue marked parts, you can replace the red parts.
