TIB719 - ValueJet & XpertJet Double Head Series - Simplified mechanical adjustment procedure

Modified on Tue, 9 Mar, 2021 at 4:34 PM

For more information concerning the double head alignments, please also check the following videotraining article:

Dual Head alignment for XpertJet and ValueJet


Commonly we receive reports from the field concerning quality-related print issues. We notice recurring errors being made in the field, that after a print head replacement, the print quality has deteriorated despite a new print head is installed.


We must stress again the importance of the precision of mechanical head-alignments, which are of critical importance for good and consistent output-quality.  We have created a document that offers a simplified, but basic overview of the mechanical adjustments, including some FAQ’s.


This document is also a reminder of the most important points where should be paid close attention to:

  • Adjustment test prints must be printed on a ‘tack-sharp’, ‘non-bleeding’ type of media.
  • Generally classic production printing vinyls are totally not suitable for this job!
  • All adjustments should preferably be observed with a microscope. Every digital microscope with a magnification from x20 until x60 will do and most of them won’t invert the image.
    So to simplify things for every technician, a digital (non-inverting) microscope is strongly recommended.
    Nowadays you can purchase USB microscopes, Smart-phone-connectable microscopes, etc. in all price classes (starting from 10€ or up) on sites like Amazon.
  • Ensure that the nozzle-check of both print heads are perfectly ok, before starting the mechanical print head adjustments. The cleaner the nozzle check of both heads fires, the easier and more accurate the adjustment will be.
  • The head slant (angle) and front & back mechanical adjustment precision are of critical importance.


If only the rough adjustments are done, but the micro-adjustments are neglected, it still will result in deteriorated output-quality!

In contrary to single-head ValueJet/XpertJet printers, where only replacing a print head commonly sufficed in the past, dual-head machines need more carefully and properly done (mechanical) adjustments.

This is in fact exactly the same like Blizzard/Spitfire printers, except a little simpler because it’s only 2 print heads.


Neglecting these mechanical alignments of both print heads to each-other, will result in deteriorated output-quality.


Warning
  • When mounting and adjusting a new print head, pay very close attention if the print head is inside the rotation-point!
  • The head is seated and gliding on 4 pads on each corner. If the print head is loosened too much, it may not be inside the rotation-point. This may result in a misalignment and improper adjustment, which the cause is sometimes hard to determine because it’s difficult to see this!




In order to detect this issue, pay attention to the following when replacing a print-head:

Properly mounted
NOT properly mounted


Head will properly pivot around over the rotation-point, when loosened
Head loosened too much. Notify the right-screw is slightly lifted up. Notify 1 or more of the 4 contact-pads is not making contact.
If the 2 mounting screws are tightened, and the rotation pin is not properly inside, it may ‘skew’ the head.
  • This makes rotation more difficult
  • This may cause your head to be ‘out ofrange’


Step 1: Head slant - rough adjustment



This adjustment makes sure that the ‘angle’ of the print head is roughly correct.
This procedure must be done twice: for head 1 and head 2.

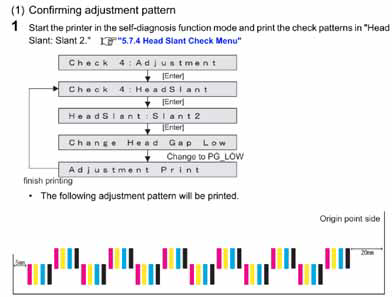

To obtain the pattern below, start the printer in diagnostics:
--> Check 4: Adjustment --> Adj 3: HeadSlant --> 1: Slant1


Each print head has a cam, that can be turned up or down. The cam position defines the angle of the print head. To be able to turn the print head, don’t forget to loosen the 2 screws, retaining the print head.

The print head is positioned against the cam B (see picture above). When turning, it will push the head forward. When the head needs a move backward you might need to “help” it a little by hand. The counter spring sometimes doesn’t apply enough force.

Example microscope view:


The more the middle line is centred, the more accurate the “rough” adjustment will be. Use a very sharp media, which does not let inks bleed. Media with excessive “ink-bleeding” is NOT RECOMMENDED! For more information about the topic concerning “ink bleeding”, please check the FAQ at the end of this document.



Step 2: HEAD SLANT - micro-adjustment



This micro-adjustment makes sure that the ‘angle’ of the print head is 100% correct.
This procedure must be done twice: both for HEAD 1 and HEAD 2 !!

To obtain the pattern below, start the printer in diagnostics: --> Check 4: Adjustment --> Adj 3:
HeadSlant --> 1: Slant1


The micro adjustment is also done with the same cam. Only the steps will be much smaller in order to obtain the perfect adjustment.


2 conditions where the head slant is perfectly adjusted:
  • The ‘colour density’ of the patches for HEAD1 and HEAD2 are exactly the same
  • The ‘microscope view’ shows no more white lines between every 2 nozzles in black. The better the nozzles are centred in between, the better the adjustment!


Important
  • NEVER CHANGE OR MANIPULATE THE DOT-SIZE PARAMETER TO SMALL IN DIAGNOSTICS WHEN DOING MECHANICAL ADJUSTMENTS. SMALL DOTS BEHAVE UNSTABLE DURING THIS ADJUSTMENT. Never touch this setting
  • More info: Page 344 of the maintenance manual VJ1638XE-M-01.PDF

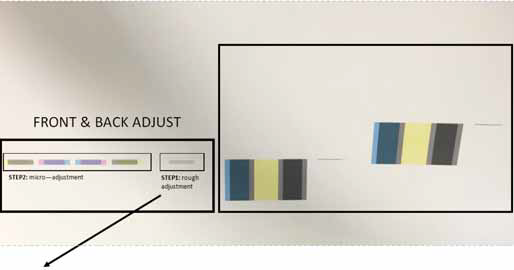

Step 3: FRONT AND BACK ADJUSTMENT - rough adjustment



This adjustment makes sure that front-rear positioning of PRINT HEAD 2 is aligned against PRINT HEAD 1.
Only print head 2 needs this adjustment, because head 1 is fixed.

To obtain the pattern below, start the printer in diagnostics: --> Check 4: Adjustment --> Adj 3:
HeadSlant --> 1: Slant1



HEAD 1 = 6 Black nozzles
HEAD 2 = 3 Yellow nozzles
AIM:

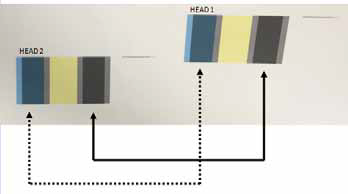

Move HEAD 2 Forward or Backward, in order to align the yellow lines, perfectly between the black lines:

Please may we remind again that this alignment can only properly be done, with tack-sharp and non-bleeding print media. NEVER use classic printing vinyl where inks are excessively bleeding:

Moving these 3 yellow lines forward / backward is done as follows:



Near HEAD 2, on the right side of the carriage there’s a big lever. This lever can move HEAD 2 forward or backward.
In order to be able to move this head, don’t forget to loosen the right screws. HEAD 2 is pushed back by a spring. In some case the head doesn’t return back properly because the spring isn’t strong enough, when the lever is turned in the opposite direction.
In this case you may need to give it a little hand’...

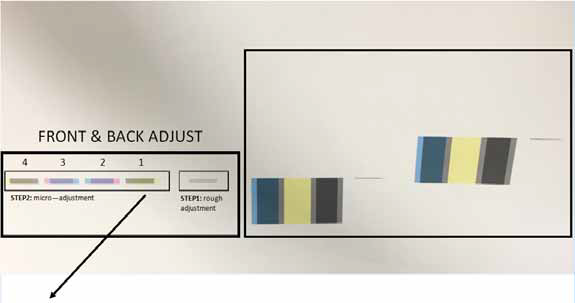

Step 4: FRONT AND BACK ADJUSTMENT - micro adjustment



This adjustment makes sure that front-rear positioning of PRINT HEAD 2 is aligned against PRINT HEAD 1.
Only print head 2 needs this adjustment, because head 1 is fixed.

To obtain the pattern below, start the printer in diagnostics: --> Check 4: Adjustment --> Adj 3: HeadSlant --> 1: Slant1


When proceeding the micro-adjustment, the 4 blocks will move up/down simultaneously:


Moving the nozzles up-down is done via the same lever, but in very small steps!


Near HEAD 2, on the right side of the carriage there’s a big lever. This lever can move HEAD 2 forward or backward.
In order to be able to move this head, don’t forget to loosen the right screws. HEAD 2 is pushed back by a spring. In some case the head doesn’t return back properly because the spring isn’t strong enough, when the lever is turned in the opposite direction.
In this case you may need to give it a little hand’...


Important
  • After the front & back adjustment of HEAD 2, re-verify the head slant again. It’s normal that it shifts a little bit after the front & back adjustment. Check and adjust the micro-adjustment when necessary!


Frequently Asked Questions

  1. When aligning the front & back micro-adjustment, it may occur that 1 of the 4 blocks are difficult to align: In the picture you can see that the bottom yellow lines are not properly aligned, between the black lines, especially in the bottom part. On top in the contrary, the yellow lines are perfectly centred between the black lines. Referring back to page 4 of this document, you should know that with the front & back micro-adjustment, there are 4 blocks. All the 4 blocks behave in exactly the same way when moving the print head front & back. If a nozzle-row of 1 block is not performing a straight-parallel jetting behaviour, try to compare the other 3 remaining blocks. Trust on it, that if these 3 remaining blocks are properly aligned, the block with the deviating nozzles will also be properly aligned.

  2. Common slant issues
    To quickly verify if the slant of both heads are “equally adjusted”, check the colour density of the 2 black patches (HEAD 1 and HEAD 2).

    Important
    If both colour patches have exactly the same colour, it doesn’t always mean that they are properly adjusted! It’s just a quick test to compare that the slant of HEAD1 and HEAD 2 are similar.

    Don’t assume they are correctly adjusted until verified with a microscope! (see page 2)

Additional checks - Vertical slant


Prior to the start of the mechanical adjustments of print heads, some important adjustments, often forgotten:


Vertical Slant / alignment
This alignment is set in the factory and should normally never be modified. Nevertheless, it’s recommended to verify the parallelism, prior to adjusting both print heads, to check if they were properly mounted on the carriage / print head bracket.



Both calibrations should not change during a head-replacement as they are fixed in the factory. So this check only needs to be verified together with the head-height calibration, after the print heads are properly adjusted. If you experience any issues while adjusting, especially pay attention to this.



Additional checks - Head Height calibration

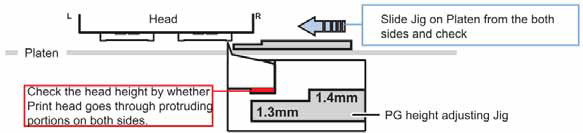

Once the vertical slant alignment has been performed, the head height needs to be calibrated relative to the print platform while the carriage is in the lowest position. .



Refer to the service manual of your machine for more information concerning the head height calibration procedure.


4) Which media should be used to mechanically adjust print heads?


** Use a media with low bleeding properties and tack-sharp line output. The finer and sharper the lines are, the more accurate you will be able to properly adjust the print heads
Use a very sharp media, which does allow ink bleed. Media with excessive “ink-bleeding” for mechanical adjustments is NOT RECOMMENDED!


BAD: The ink bleeds to much out. This affects
accuracy of the mechanical adjustment
Good: Inks are not bleeding, making sharp,
defined lines inside the pattern. This enables a
more accurate mechanical adjustment



Article changes

Revision 1.0 : 03 Mar 2017 - Initial release
Revision 1.1 : 23 Dec 2020 - Added XPJ 2H series
