TIB736 - VJ-1938TX_VJ16-TUP80U_VJ26-TUP100U_VJ19-TUP100U_Flange change

Modified on Mon, 15 Oct, 2018 at 3:41 PM

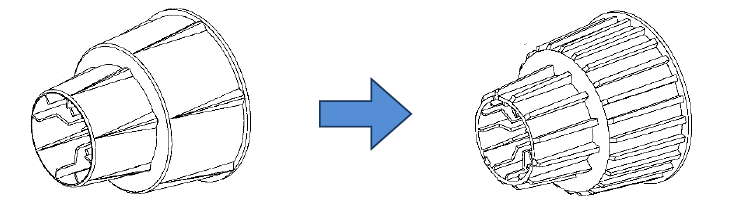

To improve the grip on the paper core of the media rolls, a revision has been made on the flanges of the heavy-duty take-up systems.

1) Target Model

VJ-1938TX
VJ16-TUP80A
VJ26-TUP100U
VJ19-TUP100U

2) Spare part numbers

DF-47876 Take Up Flange Assy
DG-42057 Flange (Drive) Assy

Note
This change will be implemented on above mentioned models as soon as possible. The current spare parts in stock are already from this new revision.

Article changes

Revision 1.0 : 04 July 2017 - Initial release
