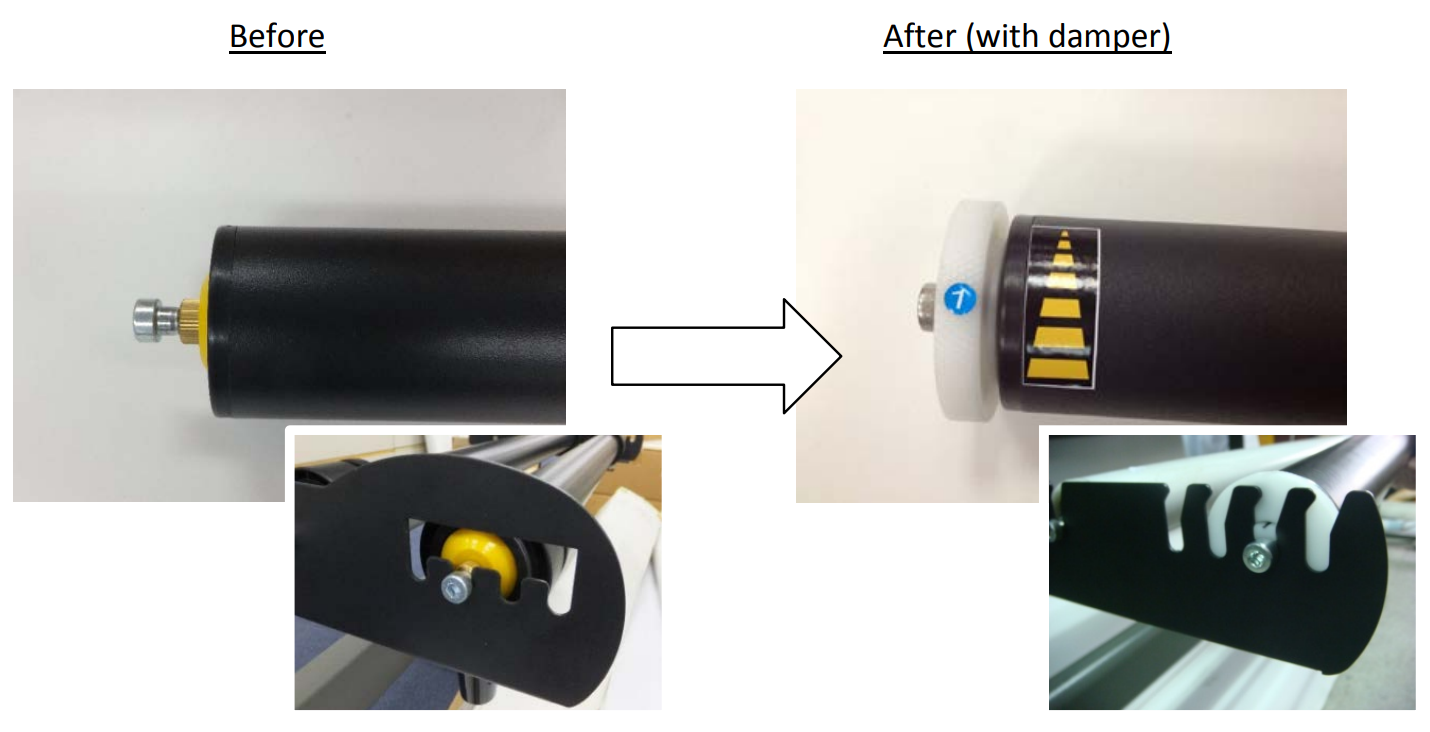

To avoid unrolling of your media while plotting, a damper was added to the outside roll holder shaft.

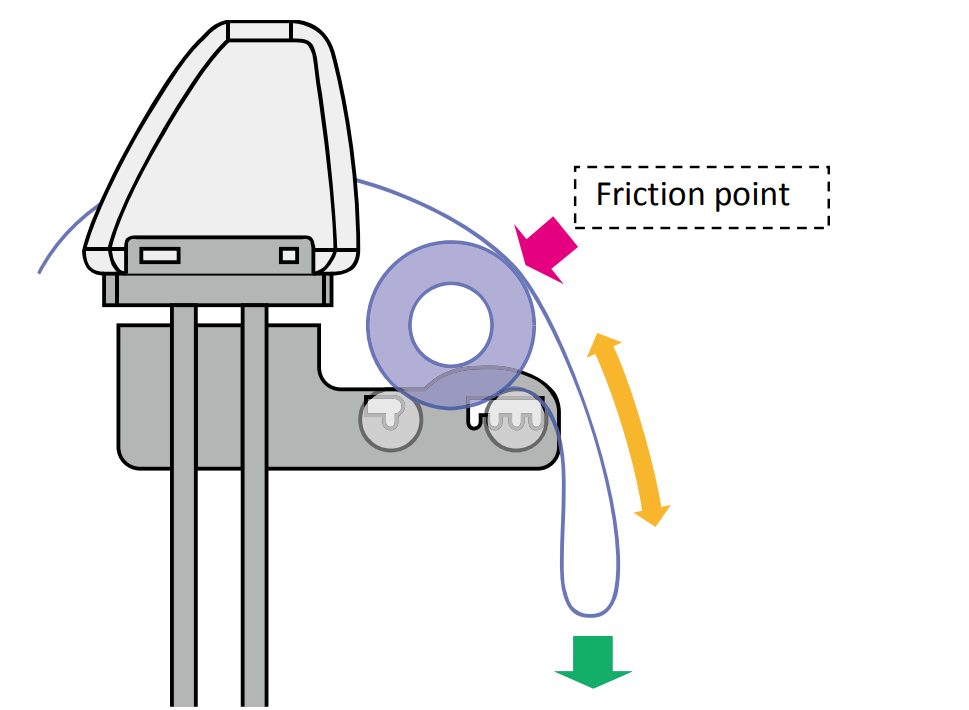

| Note This new designed roll holder shaft is to prevent unrolling of the media, and not to provide a back tension to the media. |
| The roll holder shaft with damper has been foreseen from following serial numbers: | |
| VC-600 | EVC2U0135~ |
| VC-1300 | EVC5U0304~ |
| VC-1800 | EVC7U0154~ |
