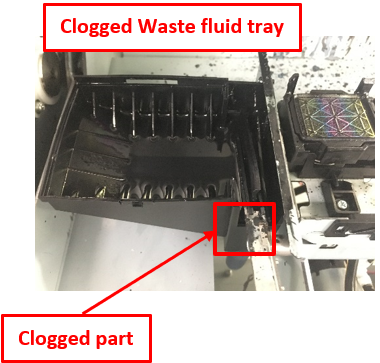

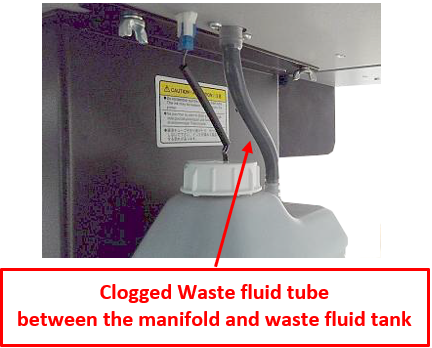

The waste fluid tray and waste fluid tube between the waste-manifold and the bottle may become clogged over long time. In order to avoid this issue, the periodical maintenance kits have been modified with some additional parts.
Waste fluid tube | Waste fluid tray |
 |  |

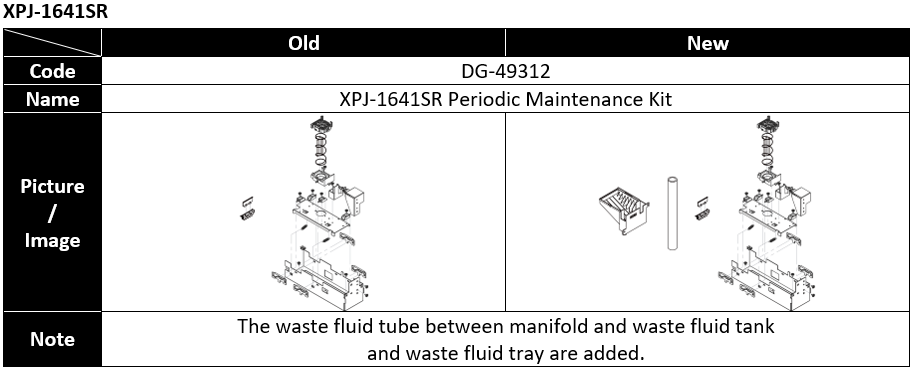

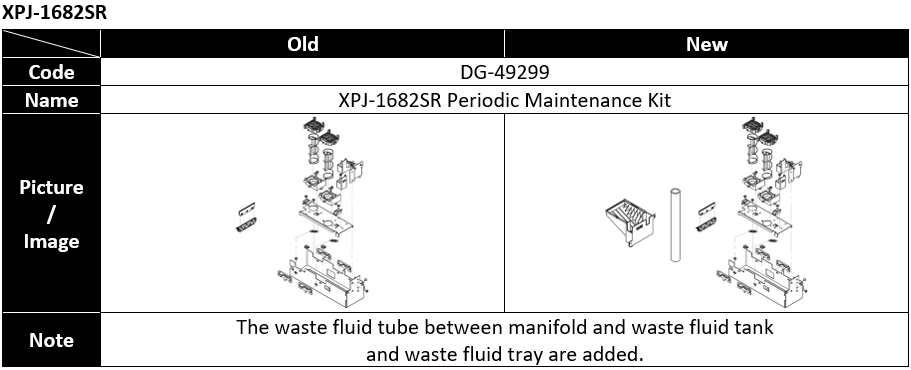

The contents inside the periodic maintenance kits for XPJ-1641SR and XPJ-1682SR will now also contain
- A waste fluid tray
- A piece of waste tube
The purpose this piece of tube is that during the periodical maintenance, it is replaced between the manifold and the waste bottle together with the waste fluid tray as well.
No replacement of tubing is required between the waste fluid tray and the waste-manifold
All kits shipped from October 1st 2020 will include these additional 2 parts.
